M80-500 Series

Catalog

12+12 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Fastening Type	Voltage Rating	Termination	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Features	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Material	Contact Shape	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Finish - Post	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Contact Type	Connector Type	Style	Shrouding	Pitch - Mating	Pitch - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Rows	Pitch	Pitch	Color	Cable Termination	Contact Finish	Wire Type	Contact Finish Thickness - Post	Mated Stacking Heights [z]
Harwin Inc. M80-5002442	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin	3 µm	Threaded	800 V	Solder	Through Hole	All	UL94 V-0	Keying Slot Mating Flange	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Circular	3.25 mm	0.128 in	Tin	2	2 mm	0.079 in	Black	5.6 mm	0.22 in	24	2.2 A	Gold	Male Pin	Header	Board to Board Cable	Shrouded - 4 Wall	0.079 "	2 mm	Phosphor Bronze	-55 C	125 °C
Harwin Inc. M80-5004405				Threaded	800 VAC	Solder	Through Hole	All	UL94 V-0	Keying Slot Mating Flange	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Circular			Gold	2	2 mm	0.079 in	Black	5.6 mm	0.22 in	44	2.2 A	Gold	Male Pin	Header	Board to Board Cable	Shrouded - 4 Wall	0.079 "	2 mm	Phosphor Bronze	-55 C	125 °C	29.5 µin	0.75 µm	0.13 "	3.3 mm
Harwin Inc. M80-5000000MN-02-334-00-000							Panel Mount			Jackscrews Polarizing Key														2			Coaxial Male Pin	Plug												1	4 mm	0.157 in	Black	Crimp	Gold	Coaxial

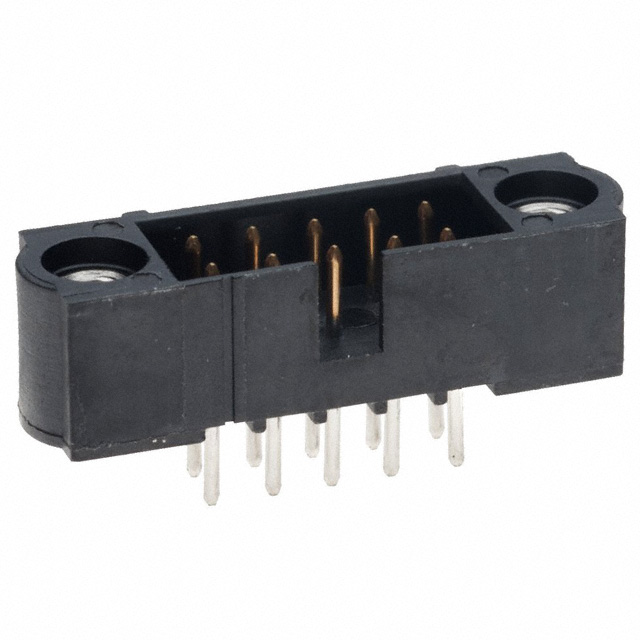

Harwin Inc. M80-5001042	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin	3 µm	Threaded	120 VDC	Solder	Through Hole	All	UL94 V-0	Keying Slot Mating Flange	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Circular	3.25 mm	0.128 in	Tin	2	2 mm	0.079 in	Black	5.6 mm	0.22 in	10	2.2 A	Gold	Male Pin	Header	Board to Board Cable	Shrouded - 4 Wall	0.079 "	2 mm	Phosphor Bronze	-55 C	125 °C
Harwin Inc. M80-5000000MB-03-336-00-000							Free Hanging (In-Line)			Jackscrews Polarizing Key																	Coaxial Male Pin	Plug												1	4 mm	0.157 in	Black	Crimp	Gold	Coaxial
Harwin Inc. M80-5000000M2-09-331-00-000							Panel Mount			Jackscrews Polarizing Key														9			Coaxial Male Pin	Plug												1	4 mm	0.157 in	Black	Crimp	Gold	Coaxial
Harwin Inc. M80-5001022	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin	3 µm	Threaded	120 VDC	Solder	Through Hole	All	UL94 V-0	Keying Slot Mating Flange	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Circular	3.25 mm	0.128 in	Tin-Lead	2	2 mm	0.079 in	Black	5.6 mm	0.22 in	10	2.2 A	Gold	Male Pin	Header	Board to Board Cable	Shrouded - 4 Wall	0.079 "	2 mm	Phosphor Bronze	-55 C	125 °C
Harwin Inc. M80-500000000-08-315-00-000				Push-Pull			Free Hanging (In-Line)			Mating Flange Polarizing Key														8			Coaxial Male Pin	Plug												1	4 mm	0.157 in	Black	Crimp	Gold	Coaxial
Harwin Inc. M80-5004442				Threaded	800 VAC	Solder	Through Hole	All	UL94 V-0	Keying Slot Mating Flange	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Circular			Tin	2	2 mm	0.079 in	Black	5.6 mm	0.22 in	44	2.2 A	Gold	Male Pin	Header	Board to Board Cable	Shrouded - 4 Wall	0.079 "	2 mm	Phosphor Bronze	-55 C	125 °C	0.3 µm		0.13 "	3.3 mm								12 µin	7.3 mm 7.8 mm
Harwin Inc. M80-5000000MN-04-333-00-000							Panel Mount			Jackscrews Polarizing Key														4			Coaxial Male Pin	Plug												1	4 mm	0.157 in	Black	Crimp	Gold	Coaxial
