637-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K

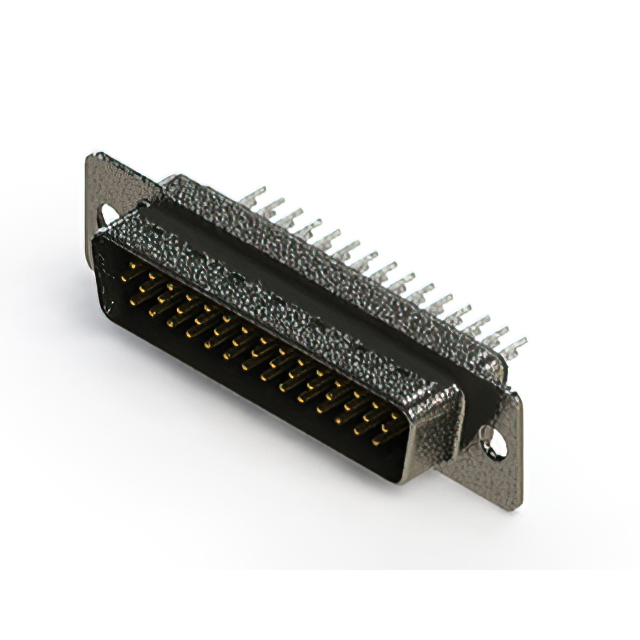

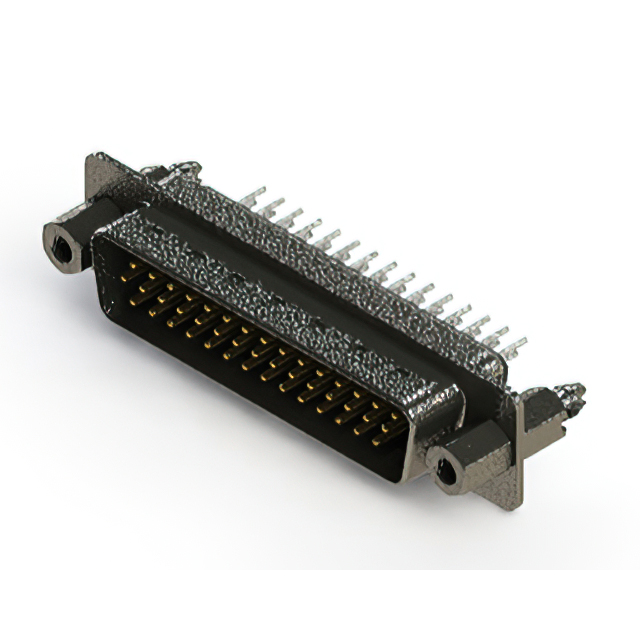

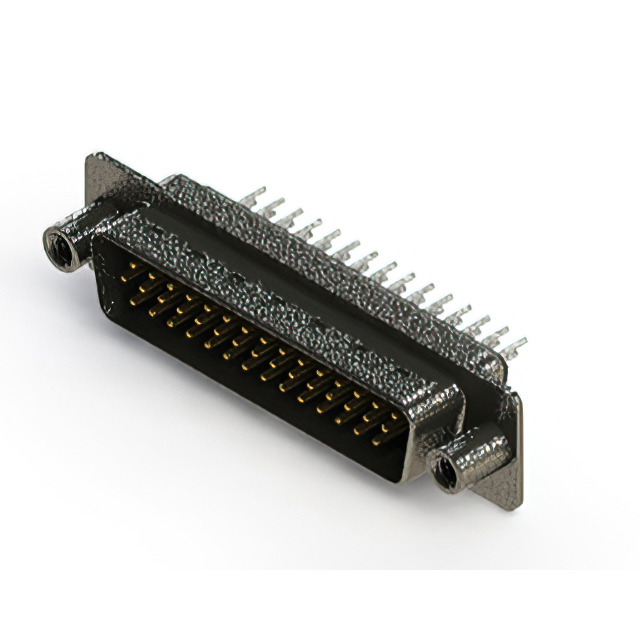

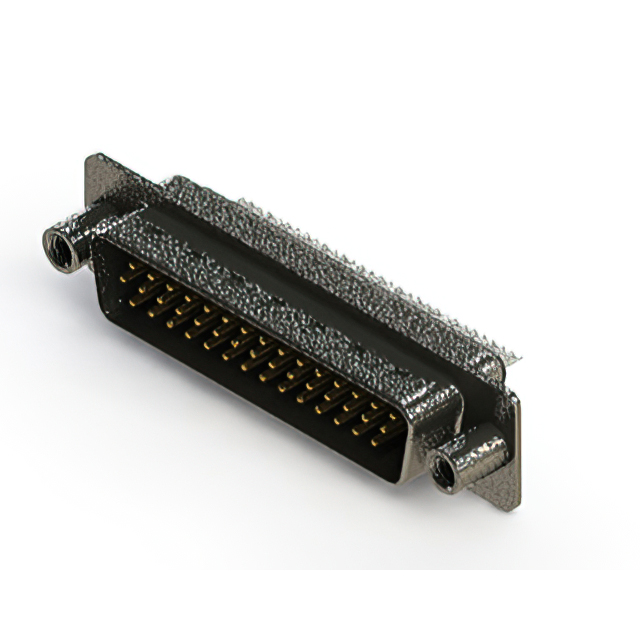

637 SERIES VERTICAL D-SUB PLUG C
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Type | Contact Finish | Number of Positions | Connector Type | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout | Connector Style | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Number of Rows [custom] | Shell Material, Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | 3 | D-Sub High Density | 4-40 | Flash | 3 A | 3 | Nickel Plated Steel | Grounding Indents Shielded | |||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | 3 | D-Sub High Density | Board Side (4-40) | Flash | 3 A | 3 | Grounding Indents Shielded | ||||
 EDAC Inc. | Brass | -55 C | 125 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | 3 | D-Sub High Density | 4-40 | 3 A | 3 | Board Lock Grounding Indents Shielded | 0.38 µm | 15 µin | Solder | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | 3 | D-Sub High Density | 4-40 | 3 A | 3 | Grounding Indents Shielded | 0.38 µm | 15 µin | |||
 EDAC Inc. | Brass | -55 C | 125 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | 3 | D-Sub High Density | 4-40 | 3 A | 3 | Grounding Indents Shielded | 0.38 µm | 15 µin | |||
 EDAC Inc. | Brass | -55 C | 125 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | 3 | D-Sub High Density | 4-40 | 3 A | 3 | Grounding Indents Shielded | 0.38 µm | 15 µin | Solder | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | 3 | D-Sub High Density | Housing/Shell (Unthreaded) | 3 A | 3 | Grounding Indents Shielded | 0.76 Ám | 30 Áin | Solder | ||
 EDAC Inc. | Brass | -55 C | 125 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | 3 | D-Sub High Density | Board Side (4-40) | Flash | 3 A | 3 | Grounding Indents Shielded | ||||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | 3 A | 3 | Grounding Indents Shielded | 0.76 Ám | 30 Áin | Solder | ||
 EDAC Inc. | Brass | -55 C | 125 °C | Black | Polyester Thermoplastic | Signal | Gold | 44 | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | 3 | D-Sub High Density | Housing/Shell (Unthreaded) | 3 A | 3 | Nickel Plated Steel | Grounding Indents Shielded | 0.76 Ám | 30 Áin | Solder |
