CLU05Q Series

Catalog

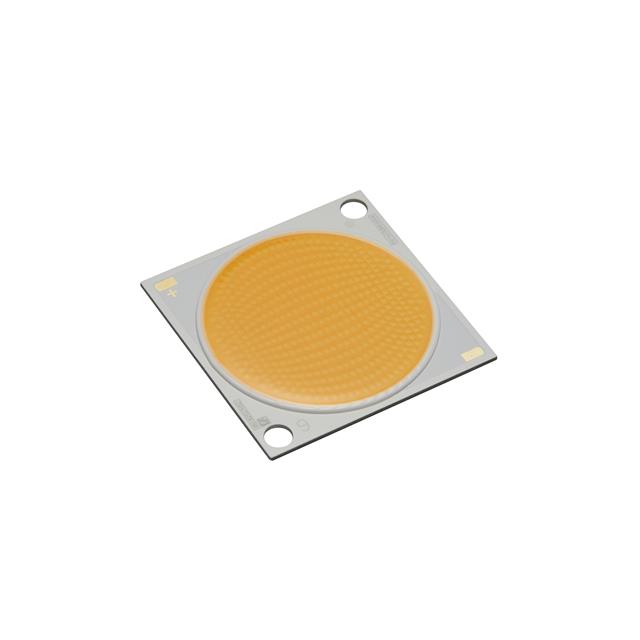

LED COB CLU05Q WARM WHT SQ 3000K

Part	Luminous Flux @ Current/Temperature	Lens Type	Features	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	CCT (K)	Temperature - Test	Type	CRI (Color Rendering Index)	Color	Light Emitting Surface (LES) [diameter]	Current - Test	Configuration	Current - Max [Max]	Height [z]	CCT (K)
Citizen Finedevice Co Ltd CLU05Q-3618E1-302M2X2	27374 lm	Flat	With Connector	156 lm/W	38 mm	38 mm	101.4 V	3000 K	85 °C	Chip On Board (COB)	80	Warm White	32.8 mm	1.62 A	Square	4.14 A	1.4 mm
Citizen Finedevice Co Ltd CLU05Q-3618E1-403L7X4	29518 lm	Flat	With Connector	168 lm/W	38 mm	38 mm	101.4 V	4000 K	85 °C	Chip On Board (COB)	70	Neutral White	32.8 mm	1.62 A	Square	4.14 A	1.4 mm	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU05Q-1825E1-303L7X4	20784 lm	Flat	With Connector	170 lm/W	38 mm	38 mm	50.7 V	3000 K	85 °C	Chip On Board (COB)	70	Warm White	32.8 mm	2.25 A	Square	5.75 A	1.4 mm	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU05Q-3618E1-502M2X2	28024 lm	Flat	With Connector	160 lm/W	38 mm	38 mm	101.4 V	5000 K	85 °C	Chip On Board (COB)	80	Cool White	32.8 mm	1.62 A	Square	4.14 A	1.4 mm	2-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU05Q-1825E1-502M2X2	19843 lm	Flat	With Connector		38 mm	38 mm	50.7 V	5000 K	85 °C	Chip On Board (COB)	80	Cool White	32.8 mm	2.25 A	Square	5.75 A	1.4 mm	2-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU05Q-1825E1-272H6X3	15017 lm	Flat	With Connector	123 lm/W	38 mm	38 mm	50.7 V	2700 K	85 °C	Chip On Board (COB)	90	Warm White	32.8 mm	2.25 A	Square	5.75 A	1.4 mm	2-Step MacAdam Ellipse
