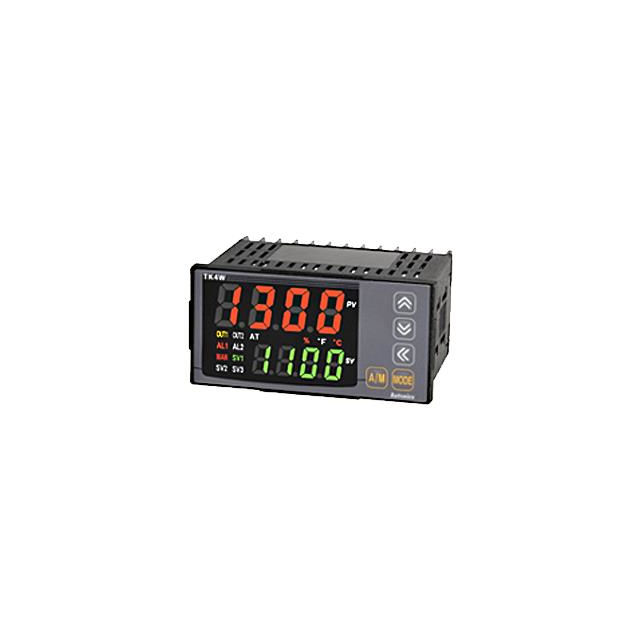

TK4W Series

Manufacturer: Autonics

Catalog

TEMP CTRL RELAY CRNT SSR 100-240

Part	Communications	Display Type	Type	Mounting Type	Features	Control Method	Input Range [Min]	Input Range [Max]	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row	Number of Characters Per Row	Output Type	Display Characters - Height	Display Characters - Height	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Autonics TK4W-24RC	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Analog Relay Solid State	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-24RR	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Relay (2)	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-14SR	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Relay Solid State	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-A4RR	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Relay (2)	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-24SC	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Analog Solid State (2)	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-A4CR	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Analog Relay Solid State	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-14RR	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Relay (2)	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-14CR	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Analog Relay Solid State	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-24CC	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Analog Solid State (2)	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
Autonics TK4W-14SC	Option Cards Available	LED - Green Red Characters	C E G J K L N PL-II R RTD S T Temperature Controller Type B U	Panel Mount	Option Cards Available	On/Off Proportional (PID)	-200 °C	2300 °C	IP65 - Dust Tight Water Resistant	240 VAC	100 VAC	4	4	Analog Solid State (2)	0.47 in 12 mm	0.67 in 17 mm	Screw Terminal	45 mm	92 mm
