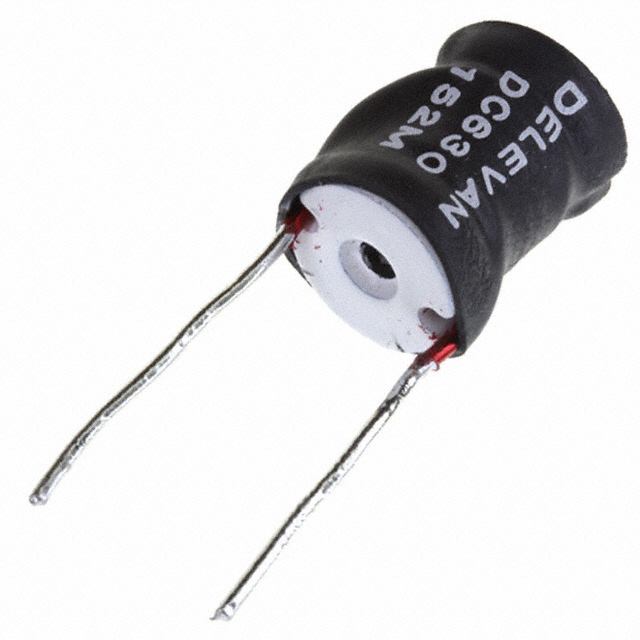

DC630 Series
Manufacturer: Delevan
Beta
⌘K
POWER INDUCTORS - LEADED 6.8UH 20% .008OHM
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Tolerance | Inductance Frequency - Test | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Type | DC Resistance (DCR) [Max] | Package / Case | Shielding | Inductance | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | 21.08 mm | 0.83 in | Through Hole | 20 % | 10 kHz | 10.5 A | 0.63 in | 16 mm | -55 C | 125 °C | Wirewound | 8 mOhm | Radial Vertical Cylinder | Unshielded | 6.8 µH | 26 A |
Delevan | 21.08 mm | 0.83 in | Through Hole | 20 % | 10 kHz | 12.8 A | 0.63 in | 16 mm | -55 C | 125 °C | Wirewound | 5 mOhm | Radial Vertical Cylinder | Unshielded | 2.7 µH | 42 A |
Delevan | 21.08 mm | 0.83 in | Through Hole | 20 % | 10 kHz | 12.3 A | 0.63 in | 16 mm | -55 C | 125 °C | Wirewound | 6 mOhm | Radial Vertical Cylinder | Unshielded | 3.9 µH | 34.5 A |
