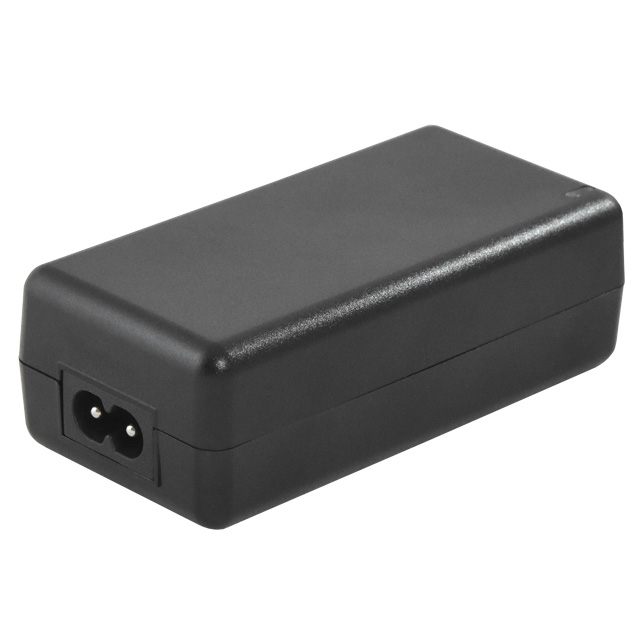

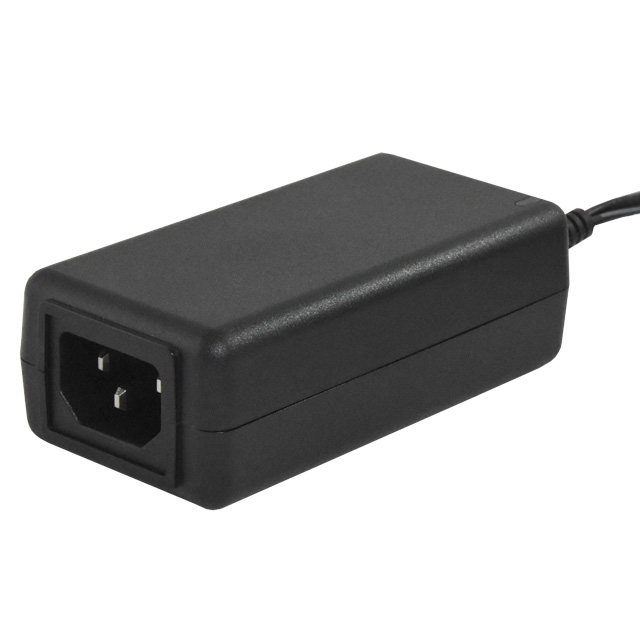

SDI36 Series

Manufacturer: CUI Inc.

Catalog

Catalog

AC/DC DESKTOP ADAPTER 48V 36W

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Region Utilized	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Form	Input Connector	Input Type	Polarization	Output Connector [diameter]	Output Connector	Output Connector [z]	Approval Agency	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Efficiency	Power (Watts)	Standard Number	Output Connector [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Cord Length	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SDI36-48-UC-P6R	40 °C	0 °C	48 V	North America	750 mA	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	Cord	Positive Center	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1
CUI Inc. SDI36-48-UDC-P5	40 °C	0 °C	48 V	North America	750 mA	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	Cord	Positive Center	2.1 mm 5.5 mm	Barrel Plug		CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in		1.3 in	99 mm	3.9 "		75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	9.5 mm	33 mm	50 mm
CUI Inc. SDI36-5-UD-P5	40 °C	0 °C	5 V	International		264 VAC	90 VAC	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	Cord (Sold Separately)	Positive Center	2.1 mm 5.5 mm	Barrel Plug		CB Scheme CSA EN FCC IEC PSE UL	39.4 in		1.97 in		1.3 in	99 mm	3.9 "		75 mW	CoC Tier 2 Level VI	25 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	9.5 mm	33 mm	50 mm	5 A	1 m
CUI Inc. SDI36-48-U2-P5R	40 °C	0 °C	48 V	Europe	750 mA	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	Cord	Positive Center		Barrel Plug R/A		CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1						9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI36-9-UDC-P6	40 °C	0 °C	9 V	North America	3.34 A	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	Cord	Positive Center	2.5 mm 5.5 mm	Barrel Plug		CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in		1.3 in	99 mm	3.9 "		75 mW	CoC Tier 2 Level VI	30 Watts	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	9.5 mm	33 mm	50 mm
CUI Inc. SDI36-5-U-P6R	40 °C	0 °C	5 V	International		264 VAC	90 VAC	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	Cord (Sold Separately)	Positive Center	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	CB Scheme CSA EN FCC IEC PSE UL	39.4 in		1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	75 mW	CoC Tier 2 Level VI	25 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1				5 A	1 m
CUI Inc. SDI36-12-U-P5	40 °C	0 °C	12 V	International	3 A	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	Cord (Sold Separately)	Positive Center	2.1 mm 5.5 mm	Barrel Plug		CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	9.5 mm
CUI Inc. SDI36-12-UC-P5R	40 °C	0 °C	12 V	North America	3 A	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	Cord	Positive Center		Barrel Plug R/A		CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1						9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI36-15-UD2-P5	40 °C	0 °C	15 V	Europe	2.4 A	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	Cord	Positive Center	2.1 mm 5.5 mm	Barrel Plug		CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in		1.3 in	99 mm	3.9 "		75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	9.5 mm	33 mm	50 mm
CUI Inc. SDI36-24-U2-P6R	40 °C	0 °C	24 V	Europe	1.5 A	264 VAC	90 VAC	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	Cord	Positive Center	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	CB Scheme CSA EN FCC IEC PSE UL	1.5 m	59 in	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	75 mW	CoC Tier 2 Level VI	36 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1
