LD15P13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

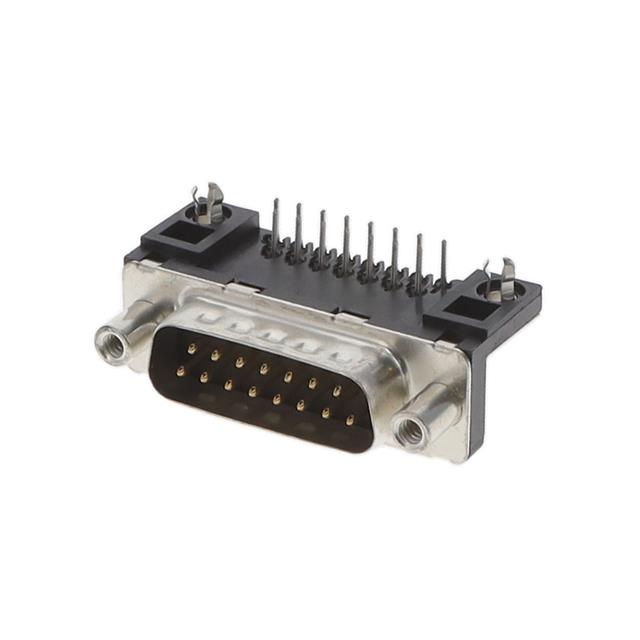

CONN D-SUB PLUG 15POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Voltage Rating | Material Flammability Rating | Shell Size, Connector Layout | Number of Rows [custom] | Connector Type | Current Rating (Amps) | Shell Material, Finish | Number of Positions | Mounting Type | Connector Style | Backset Spacing | Backset Spacing | Contact Type | Flange Feature | Contact Finish Thickness | Contact Finish | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | -55 C | 105 ░C | Black | Thermoplastic | Copper Alloy | 250 V | UL94 V-0 | 2 | 2 | Plug Male Pins | 5 A | Steel Tin-Nickel Plated | 15 | Board Edge Right Angle Through Hole | D-Sub | 10.4 mm | 0.409 in | Signal | 4-40 Mating Side Female Screwlock | Flash | Gold | Board Lock Grounding Indents | Solder |
