219564 Series

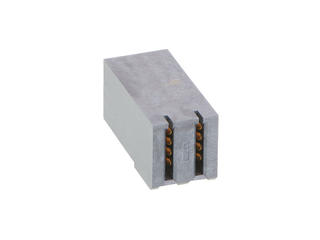

EXTreme Guardian HD Right-Angle Receptacle Assembly without Guide Receivers, 5 Power Circuits
Manufacturer: Molex
Catalog
EXTreme Guardian HD Right-Angle Receptacle Assembly without Guide Receivers, 5 Power Circuits
EXTreme Guardian HD Right-Angle Receptacle Assembly without Guide Receivers, 5 Power Circuits
EXTreme Guardian HD Right-Angle Receptacle Assembly without Guide Receivers, 5 Power Circuits
EXTreme Guardian HD Right-Angle Receptacle Assembly without Guide Receivers, 5 Power Circuits
| Part | Termination | Fastening Type | Material - Insulation | Number of Rows | Contact Material | Color | Mounting Type | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 2 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 1 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 8 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 5 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 34 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 9 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 5 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 35 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 7 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 9 |
Molex | Press-Fit | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Copper Alloy | Black | Through Hole Right Angle | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | Gold | Board Guide | 4 |
