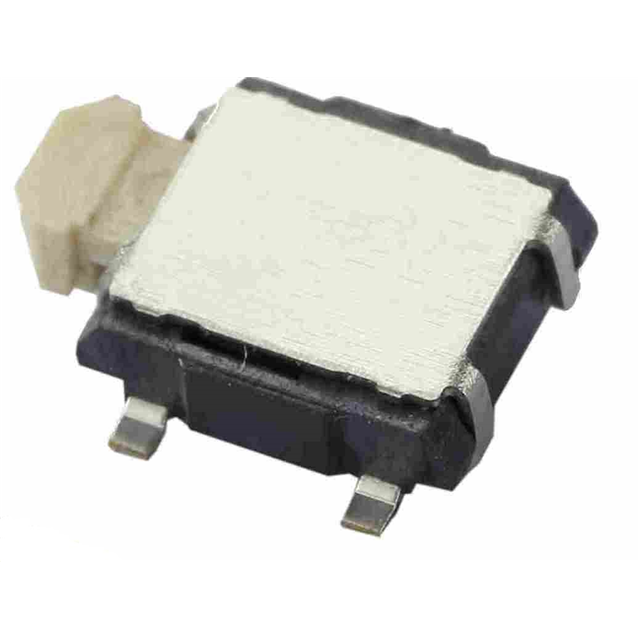

223DM1 Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Contact Rating @ Voltage | Features | Circuit | Actuator Orientation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length, Right Angle [x] | Actuator Type | Operating Force | Outline [y] | Outline [x] | Switch Function | Illumination | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 50000 Cycles | 0.2 mm | 0.05 A 12 VDC | Board Guide Tactile Feedback | SPST-NO | Side Actuated | Right Angle Surface Mount | 85 °C | -40 C | 7.05 mm | Standard | 350 gf | 5.4 mm | 6 mm | Off-Mom | Non-Illuminated | Gull Wing |
