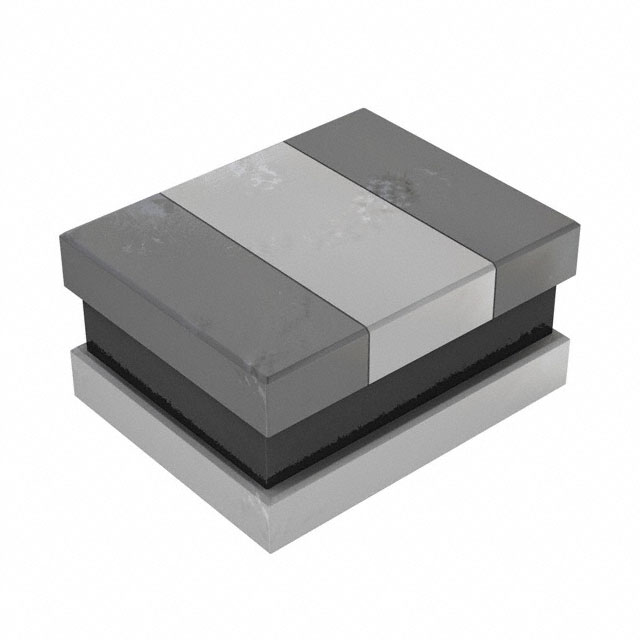

SRN2512 Series

Catalog

MAGNETICS - SEMI-SHIELDED POWER INDUCTOR /TAPE & REEL - 7" REEL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Inductance	Package / Case	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Shielding	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Supplier Device Package	Supplier Device Package	Frequency - Self Resonant	Current Rating (Amps)	Current - Saturation (Isat)	Package / Case	Q @ Freq	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRN2512-4R7M	1.2 mm	0.047 "	Drum Core Wirewound	4.7 ÁH	Nonstandard	20 %	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Ferrite	Shielded	1 MHz	-55 C	125 °C
Bourns Inc. SRN2512-R47M	1.2 mm	0.047 "	Drum Core Wirewound	470 nH	1008	20 %	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Ferrite	Shielded	1 MHz	-55 C	125 °C	32 mOhm	2520 Metric	1008	190 MHz	4.4 A	5.5 A	2520 Metric	1 MHz 8
Bourns Inc. SRN2512-R33M	1.2 mm	0.047 "	Drum Core Wirewound	330 nH	1008	20 %	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Ferrite	Shielded	1 MHz	-55 C	125 °C	32 mOhm	2520 Metric	1008	300 MHz	4.5 A	5.7 A	2520 Metric		7	1 MHz
Bourns Inc. SRN2512-R24M	1.2 mm	0.047 "	Drum Core Wirewound	240 nH	1008	20 %	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Ferrite	Shielded	1 MHz	-55 C	125 °C	24 mOhm	2520 Metric	1008	330 MHz	4.7 A	8 A	2520 Metric		7	1 MHz
Bourns Inc. SRN2512-2R2M	1.2 mm	0.047 "	Drum Core Wirewound	2.2 µH	1008	20 %	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Ferrite	Shielded	1 MHz	-55 C	125 °C	102 mOhm	2520 Metric	1008	80 MHz	2.3 A	2.7 A	2520 Metric	1 MHz 11
