SSA-LXH1225 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED CBI 5X2.5MM 12-SEG RED VERT
| Part | Mounting Type | Wavelength - Peak | Viewing Angle | Color | Current | Configuration | Configuration | Lens Type | Lens Size [x] | Lens Size [y] | Voltage Rating | Millicandela Rating | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

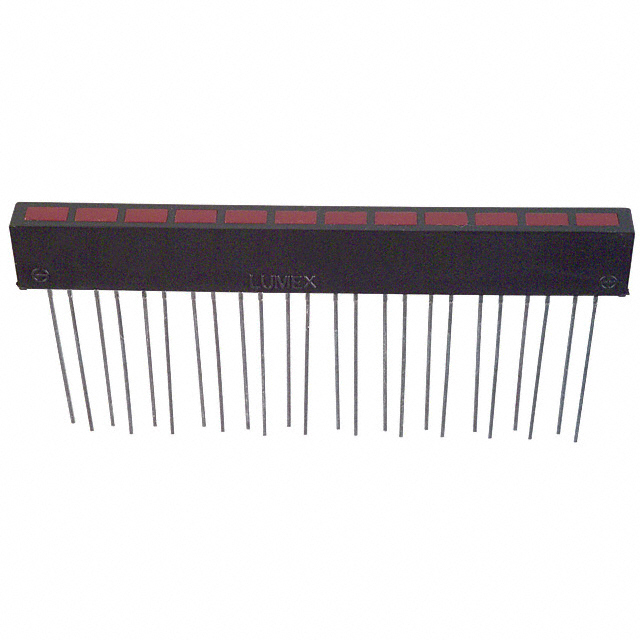

 Lumex Opto/Components Inc. | Through Hole | 635 nm | 110 ° | Red (x 12) | 30 mA | Bar SIP | 12 Wide | Diffused Tinted | 5 mm | 2.5 mm | 2 V | 10 mcd | Rectangle with Flat Top |

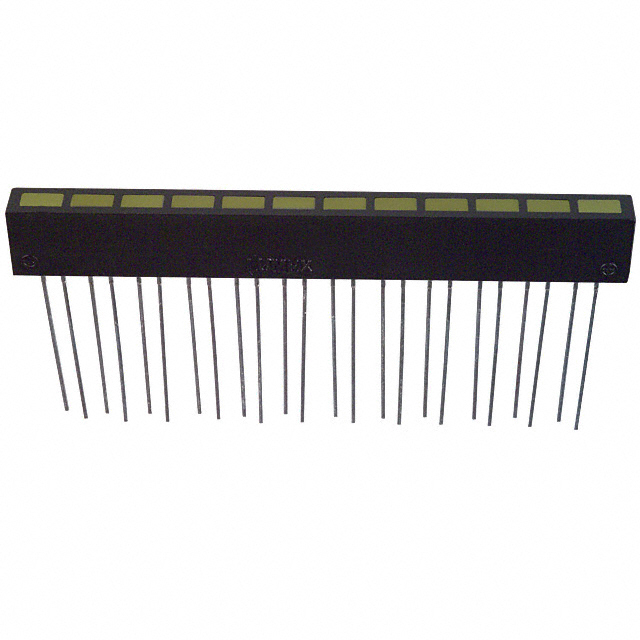

 Lumex Opto/Components Inc. | Through Hole | 590 nm | 110 ° | Yellow (x 12) | 30 mA | Bar SIP | 12 Wide | Diffused Tinted | 5 mm | 2.5 mm | 2.1 V | 100 mcd | Rectangle with Flat Top |
Lumex Opto/Components Inc. | Through Hole | 660 nm | 110 ° | Red (x 12) | 30 mA | Bar SIP | 12 Wide | Diffused Tinted | 5 mm | 2.5 mm | 1.7 V | 10 mcd | Rectangle with Flat Top |

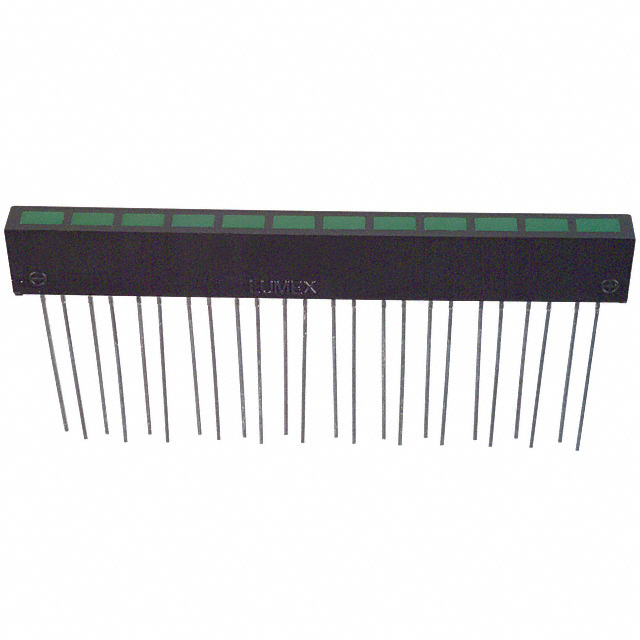

 Lumex Opto/Components Inc. | Through Hole | 565 nm | 110 ° | Green (x 12) | 25 mA | Bar SIP | 12 Wide | Diffused Tinted | 5 mm | 2.5 mm | 10 mcd | Rectangle with Flat Top |
