203W112 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ12 BLACK

Part	Small Recovered Length	Small Recovered Length	Type	Material	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Color	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Features	Total Length Recovered [x]	Total Length Recovered [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Shell Size - Insert	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 203W112-25/86-0	1.102 in	27.99 mm	Boot	Elastomer Semi-Rigid Irradiated	0.547 in	13.89 mm	Black	4.29 mm	0.169 "	35.05 mm	1.38 in	Abrasion Resistant Adhesive Coating Chemical Resistant Eyelet and Clip Flame Retardant Fluid Resistant Heat Resistant	2.76 in	70.1 mm	18.03 mm	0.71 in	12	0.71 in	18.03 mm
TE Connectivity Aerospace, Defense and Marine 203W112-25/225-0	1.102 in	27.99 mm	Boot	Elastomer Semi-Rigid Irradiated	0.547 in	13.89 mm	Black	4.29 mm	0.169 "	35.05 mm	1.38 in	Abrasion Resistant Adhesive Coating Chemical Resistant Eyelet and Clip Flame Retardant Fluid Resistant Heat Resistant	2.76 in	70.1 mm	18.03 mm	0.71 in	12	0.71 in	18.03 mm

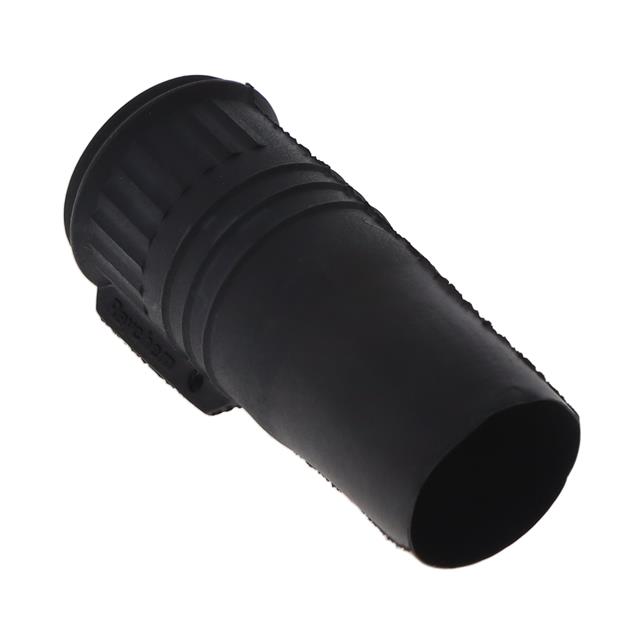

TE Connectivity Aerospace, Defense and Marine 203W112-3-0	1.102 in	27.99 mm	Boot	Polyolefin (PO) Semi-Rigid Irradiated	0.547 in	13.89 mm	Black	4.29 mm	0.169 "	35.05 mm	1.38 in	Eyelet and Clip Flame Retardant Fluid Resistant Heat Resistant	2.76 in	70.1 mm	18.03 mm	0.71 in	12	0.71 in	18.03 mm
TE Connectivity Aerospace, Defense and Marine 203W112-25-0	1.102 in	27.99 mm	Boot	Elastomer Semi-Rigid Irradiated	0.547 in	13.89 mm	Black	4.29 mm	0.169 "	35.05 mm	1.38 in	Abrasion Resistant Chemical Resistant Eyelet and Clip Flame Retardant Fluid Resistant Heat Resistant Strain Resistant	2.76 in	70.1 mm	18.03 mm	0.71 in	12	0.71 in	18.03 mm
