STKR Series
Manufacturer: TELE Controls Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPDT 6A 115V
| Part | Contact Form | Contact Rating (Current) | Relay Type | Termination Style | Coil Voltage | Switching Voltage AC (Max) | Coil Type | Operate Time | Release Time | Must Release Voltage | Coil Current | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Must Operate Voltage Type | Must Release Voltage Type | Coil Voltage (Type) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

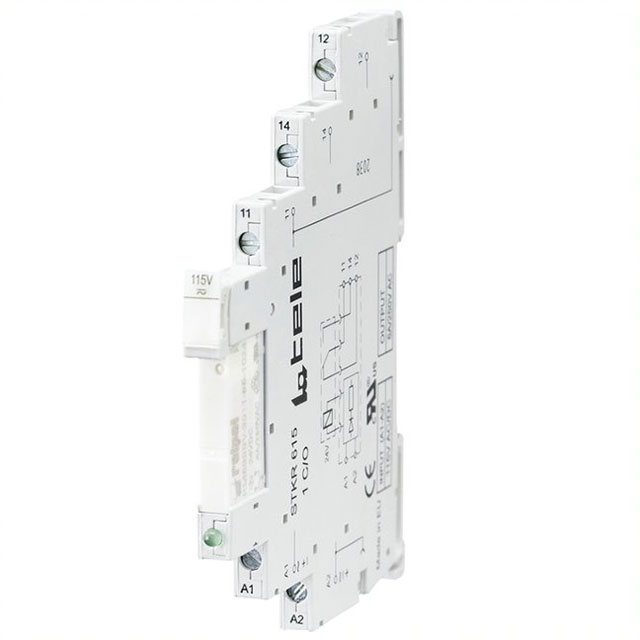

 TELE Controls Inc | 1 C Form SPDT | 6 A | General Purpose | Screw Terminal | 115 VAC | 400 VAC | Non Latching | 8 ms | 10 ms | 22 VDC | 8 mA | DIN Rail | -40 °C | 55 °C | 92 VAC | |||

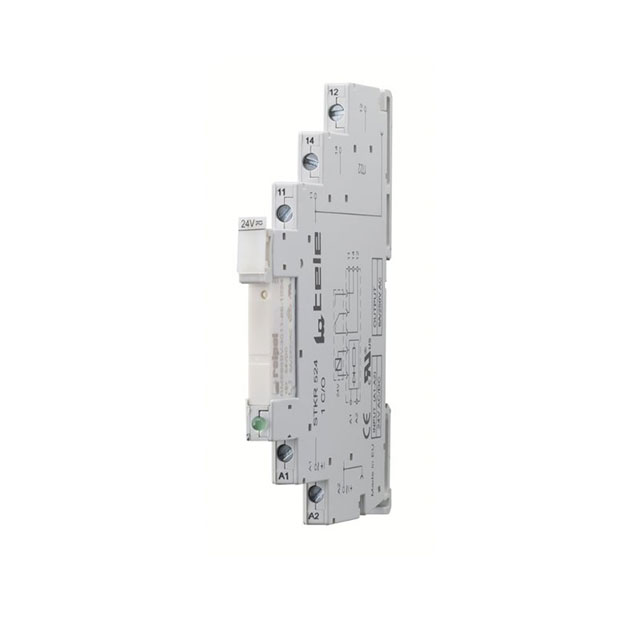

 TELE Controls Inc | 1 C Form SPDT | 6 A | General Purpose | Screw Terminal | 24 VDC | 400 VAC | Non Latching | 8 ms | 10 ms | 4.8 VAC | 8 mA | DIN Rail | -40 °C | 55 °C | 19.2 V | AC DC | AC DC | AC DC |

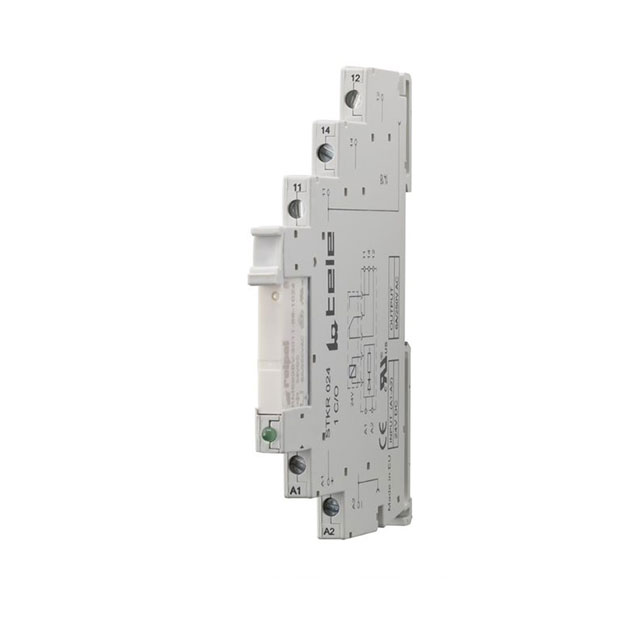

 TELE Controls Inc | 1 C Form SPDT | 6 A | General Purpose | Screw Terminal | 24 VDC | 400 VAC | Non Latching | 8 ms | 10 ms | 2.4 V | 8 mA | DIN Rail | -40 °C | 60 °C | 19.2 V |
