147548 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

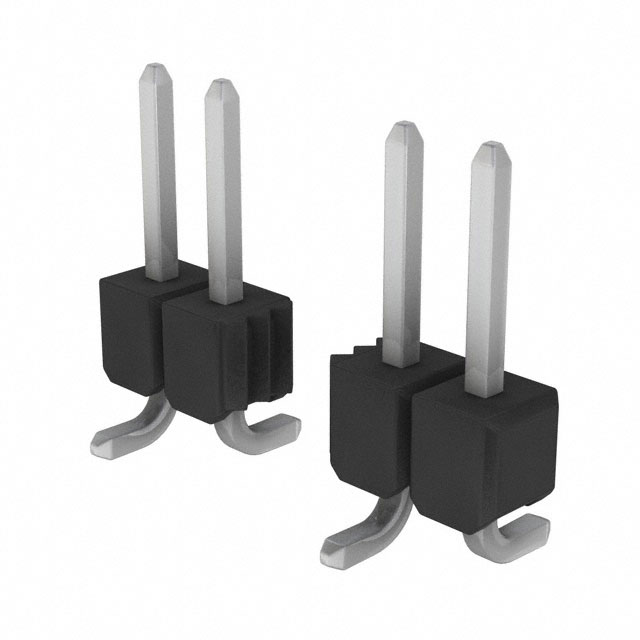

BOARD CONNECTOR, 9 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR
| Part | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Style | Number of Rows | Contact Finish - Mating | Contact Finish - Post | Contact Type | Number of Positions | Termination | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Material | Shrouding | Material Flammability Rating | Mounting Type | Features | Contact Material | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | 2.54 µm | 100 µin | Black | Board to Board Cable | 1 | Tin-Lead | Tin-Lead | Male Pin | 9 | Solder | Square | 0.1 in | 2.54 mm | Breakaway Header | Liquid Crystal Polymer (LCP) | Unshrouded | UL94 V-0 | Surface Mount | Pick and Place | Phosphor Bronze | 8.13 mm | 0.32 in | 2.54 çm | 100 çin | 0.09 in | 2.29 mm |
