T 3324 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG MALE 4P SILV SLDR CUP

Part	Orientation	Fastening Type	Features	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions	Ingress Protection	Current Rating (Amps)	Connector Type	Mounting Type	Shell Size - Insert	Shell Material	Contact Finish - Mating	Color	Shell Finish	Shielding	Note	Contact Type	Contact Size	Contact Shape	Insert Material	Material Flammability Rating	Type	Housing Color
Amphenol Tuchel Industrial T 3324 991	Keyed	Bayonet Lock	Strain Relief	Plastic	-40 C	100 °C	250 V	4	IP40	10 A	Plug Male Pins	Free Hanging (In-Line)	M16-4	Plastic	Silver
Amphenol Tuchel Industrial T 3324 005	Keyed	Bayonet Lock	Strain Relief	Metal	-40 C	100 °C	250 V	4	IP40	10 A	Plug Male Pins	Free Hanging (In-Line) Right Angle	M16-4	Die Cast	Silver	Silver	Nickel

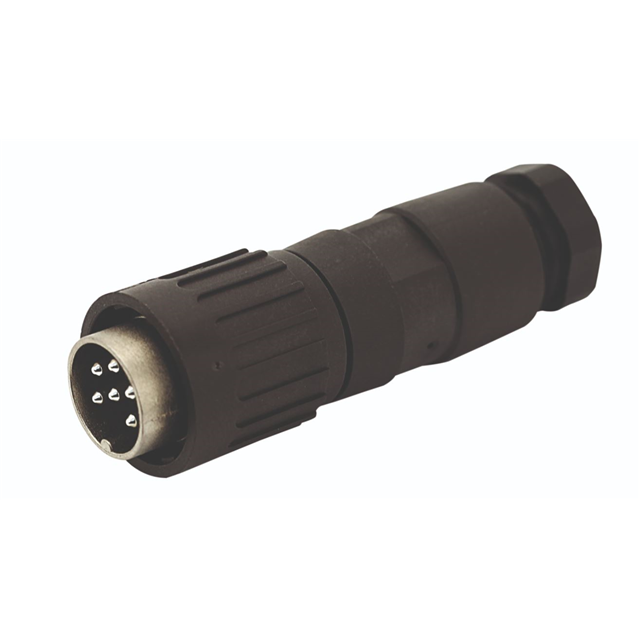

Amphenol Tuchel Industrial T 3324 552	Keyed	Bayonet Lock	Backshell Cable Clamp Coupling Nut		-40 C	100 °C		4	IP40		Plug Housing	Free Hanging (In-Line)	M16-4	Die Cast			Nickel	Unshielded	Contacts Not Included	Crimp	1.5 mm	Circular	Thermoplastic	UL94 V-0	For Male Pins	Black Silver
Amphenol Tuchel Industrial T 3324 518	Keyed	Bayonet Lock	Strain Relief	Metal	-40 C	100 °C	250 V	4	IP40	10 A	Plug Male Pins	Free Hanging (In-Line)	M16-4	Die Cast	Gold	Silver	Nickel
Amphenol Tuchel Industrial T 3324 502	Keyed	Bayonet Lock	Cable Clamp Strain Relief	Metal	-40 C	100 °C	250 V	4	IP40	10 A	Plug Male Pins	Free Hanging (In-Line)	M16-4	Die Cast	Silver	Silver	Nickel

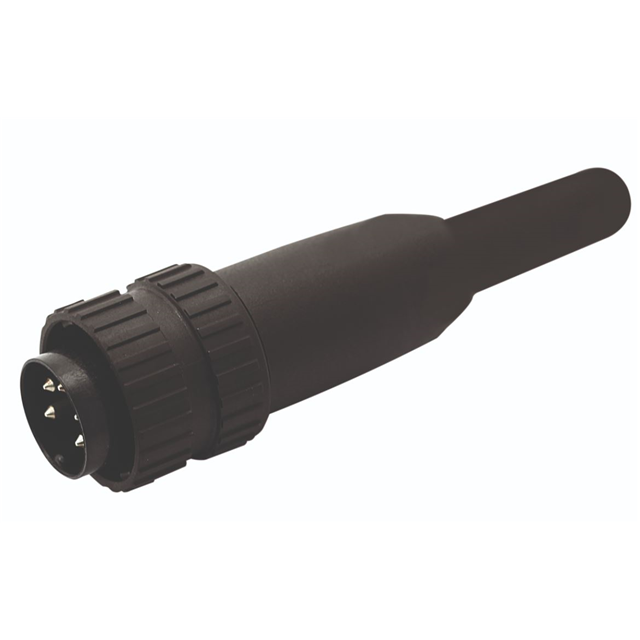

Amphenol Tuchel Industrial T 3324 951	Keyed	Bayonet Lock	Coupling Nut Strain Relief		-40 C	100 °C		4	IP40		Plug Housing	Free Hanging (In-Line)	M16-4	Plastic				Unshielded	Contacts Not Included	Crimp	1.5 mm	Circular	Thermoplastic	UL94 V-0	For Male Pins	Black

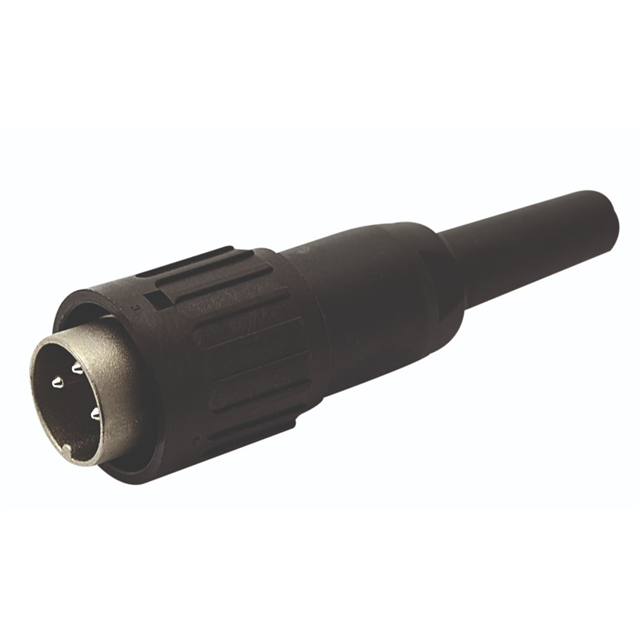

Amphenol Tuchel Industrial T 3324 551	Keyed	Bayonet Lock	Cable Clamp Coupling Nut Strain Relief		-40 C	100 °C		4	IP40		Plug Housing	Free Hanging (In-Line)	M16-4	Die Cast			Nickel	Unshielded	Contacts Not Included	Crimp	1.5 mm	Circular	Thermoplastic	UL94 V-0	For Male Pins	Black Silver
