293522 Series

Catalog

CONN SSL SPLICE 4POS 2.5MM IDC

Part	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Number of Positions	Termination	Style	Wire Gauge	Mounting Type	Housing Material	Current Rating (Amps)	Pitch [x]	Pitch [x]	Housing Color	Features

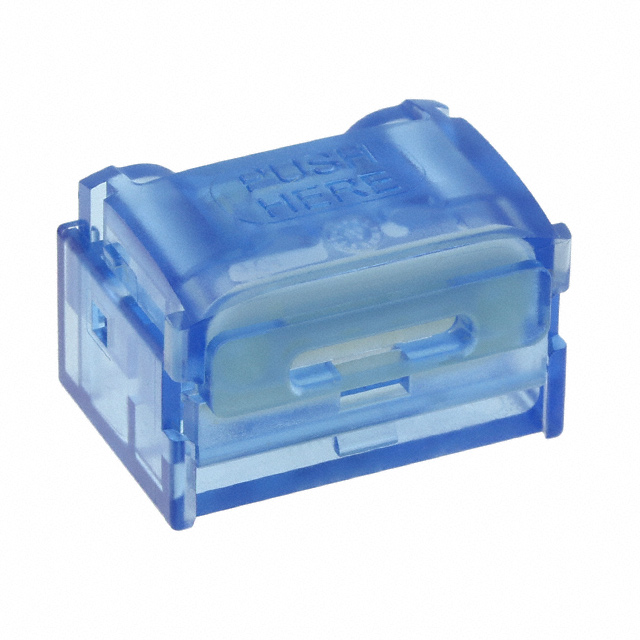

TE Connectivity Raychem Cable Protection 5-293522-1	35 V	100 °C	-40 °C	Splice	IP66	4	IDC	Cable/Wire to Cable/Wire	24 AWG 26 AWG	Free Hanging (In-Line)	Polycarbonate (PC)	1.5 A 6 A	0.098 in	2.5 mm	Blue Transparent	Gel Filled
TE Connectivity Raychem Cable Protection 293522-2	35 V	100 °C	-40 °C	Splice	IP66	4	IDC	Cable/Wire to Cable/Wire	24 AWG 26 AWG	Free Hanging (In-Line)	Polycarbonate (PC)	1.5 A 6 A	0.098 in	2.5 mm	Green Transparent	Gel Filled

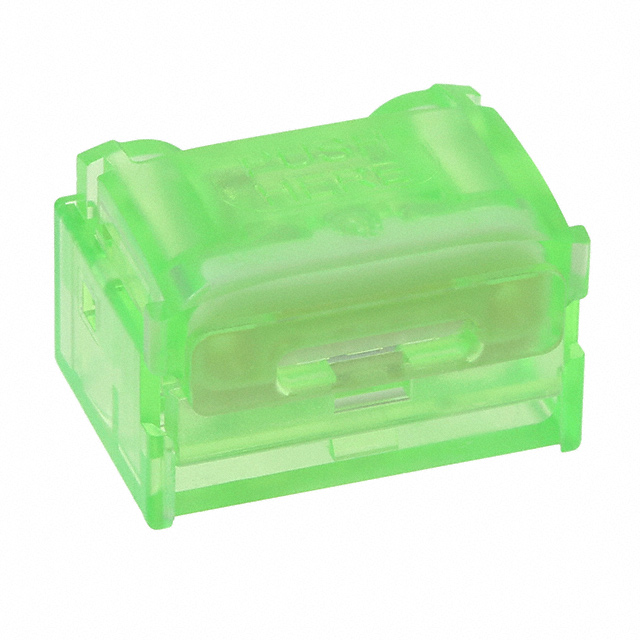

TE Connectivity Raychem Cable Protection 5-293522-2	35 V	100 °C	-40 °C	Splice	IP66	4	IDC	Cable/Wire to Cable/Wire	24 AWG 26 AWG	Free Hanging (In-Line)	Polycarbonate (PC)	1.5 A 6 A	0.098 in	2.5 mm	Green Transparent	Gel Filled

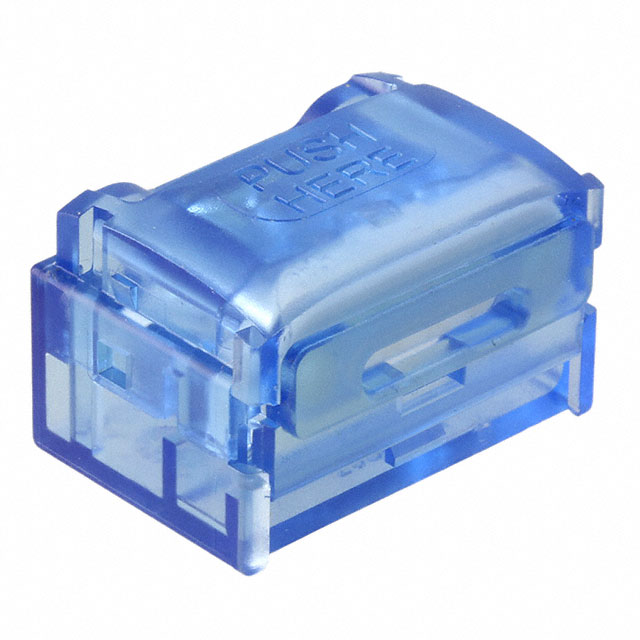

TE Connectivity Raychem Cable Protection 293522-1	35 V	100 °C	-40 °C	Splice	IP66	4	IDC	Cable/Wire to Cable/Wire	24 AWG 26 AWG	Free Hanging (In-Line)	Polycarbonate (PC)	1.5 A 6 A	0.098 in	2.5 mm	Blue Transparent	Gel Filled
