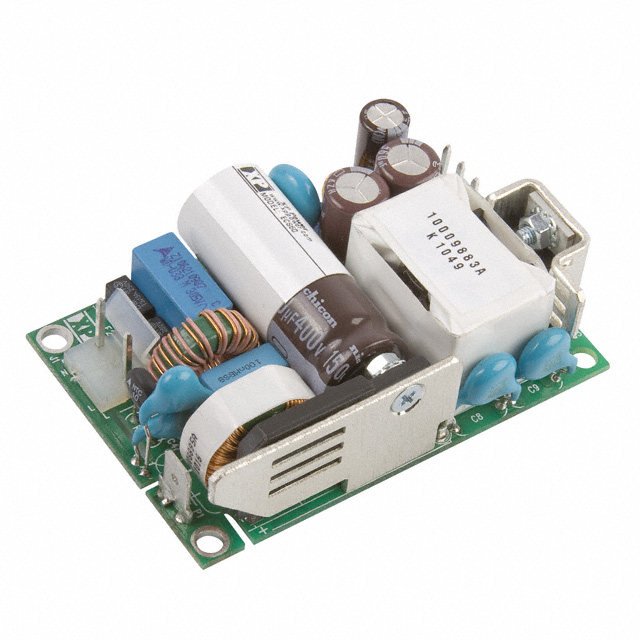

ECS60 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 5V 60W
| Part | Minimum Load Required | Voltage - Isolation | Efficiency | Number of Outputs | Applications | Standard Number | Type | Voltage - Output 1 | Mounting Type | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Approval Agency | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 4000 V | 90 % | 1 | ITE (Commercial) Medical | 62368-1 | Open Frame | 5 V | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 26.7 mm | 1.05 in | 3 " | 2 in | 76.2 mm | 50.8 mm | 60 W | CB | 8 A | 70 °C | -20 °C | 80 VAC | 264 VAC | |
XP Power | 4000 V | 90 % | 1 | ITE (Commercial) Medical | 62368-1 | Open Frame | 12 V | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 26.7 mm | 1.05 in | 3 " | 2 in | 76.2 mm | 50.8 mm | 60 W | CB | 5 A | 70 °C | -20 °C | 80 VAC | 264 VAC |
