2004-14 Series
Manufacturer: WAGO Corporation
Beta
⌘K
DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A
| Part | Material - Insulation | Stripping Length [Min] | Stripping Length [Max] | Color | Number of Levels | Current - IEC | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Positions | Voltage - IEC | Current - UL | Termination Style | Terminal - Width [y] | Type | Voltage - UL | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

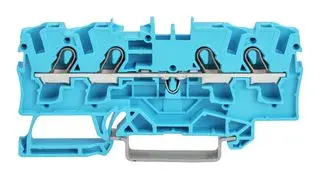

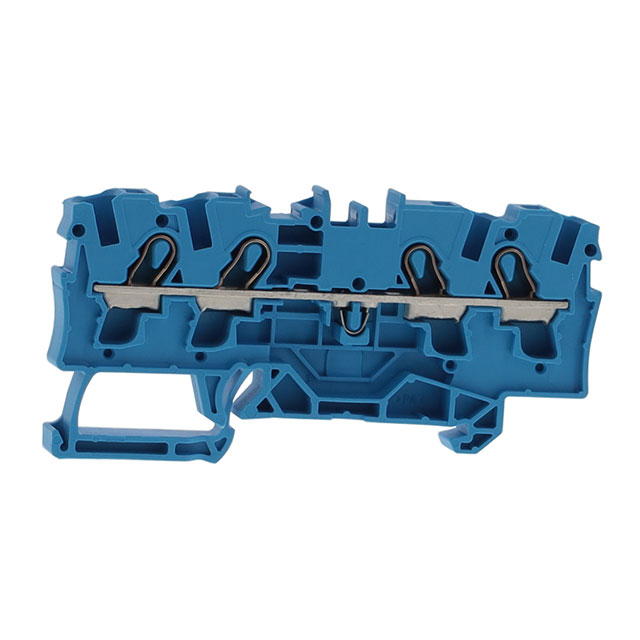

 WAGO Corporation | Nylon 6/6 Polyamide (PA66) | 11 mm | 13 mm | Blue | 1 | 41 A | 14 AWG | 10 AWG | 4 | 800 V | 30 A | Push In Spring | 6.2 mm | Feed Through | 600 V | 6 mm² | 1.5 mm² | |

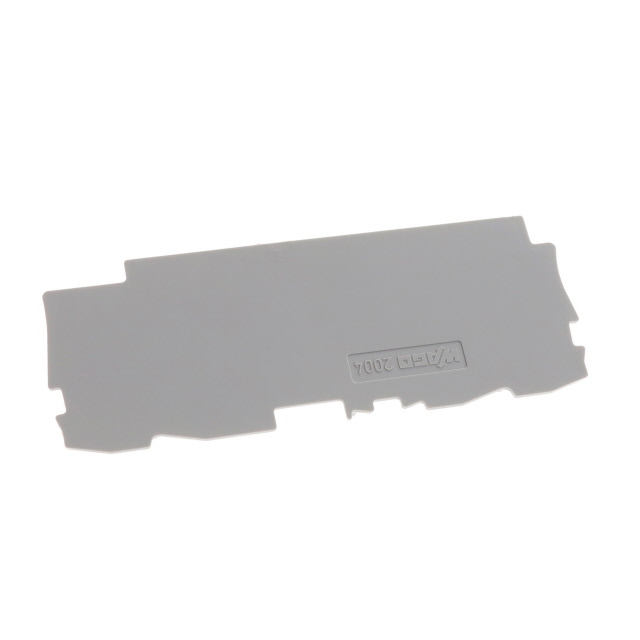

 WAGO Corporation | Gray | End Plate | TOPJOB®S Series | |||||||||||||||

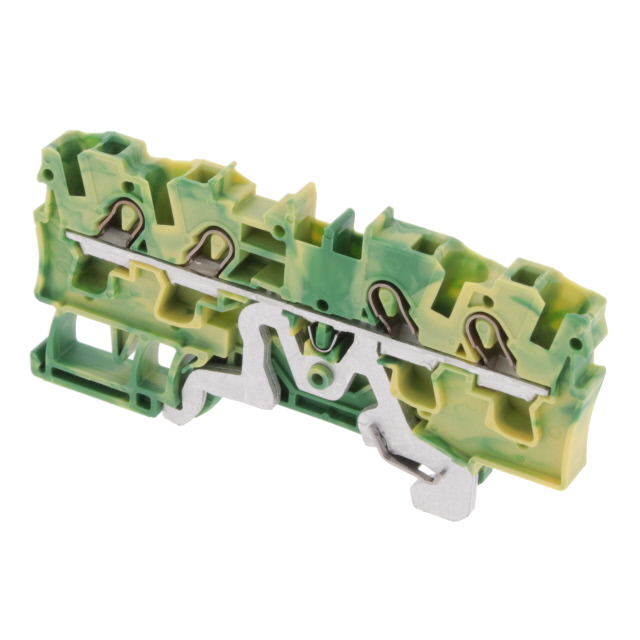

 WAGO Corporation | Nylon 6/6 Polyamide (PA66) | 11 mm | 13 mm | Green Yellow | 1 | 14 AWG | 10 AWG | 4 | Push In Spring | 6.2 mm | Ground Earth | 6 mm² | 1.5 mm² | |||||

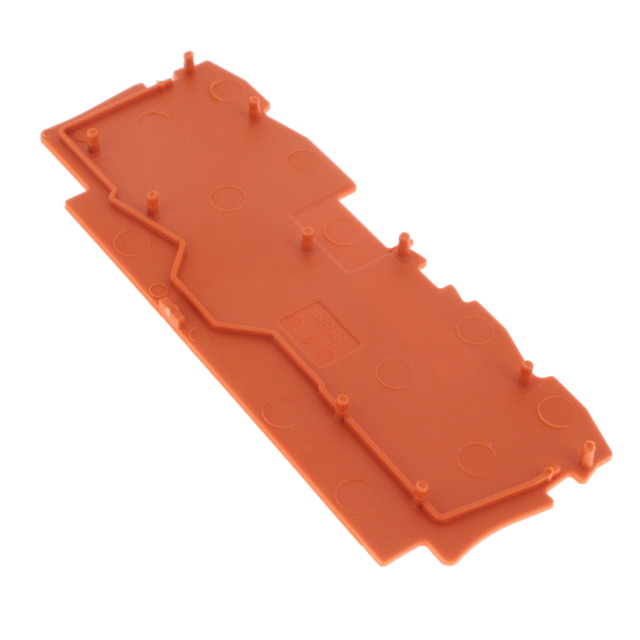

 WAGO Corporation | End Plate | TOPJOB®S Series |
