146087 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

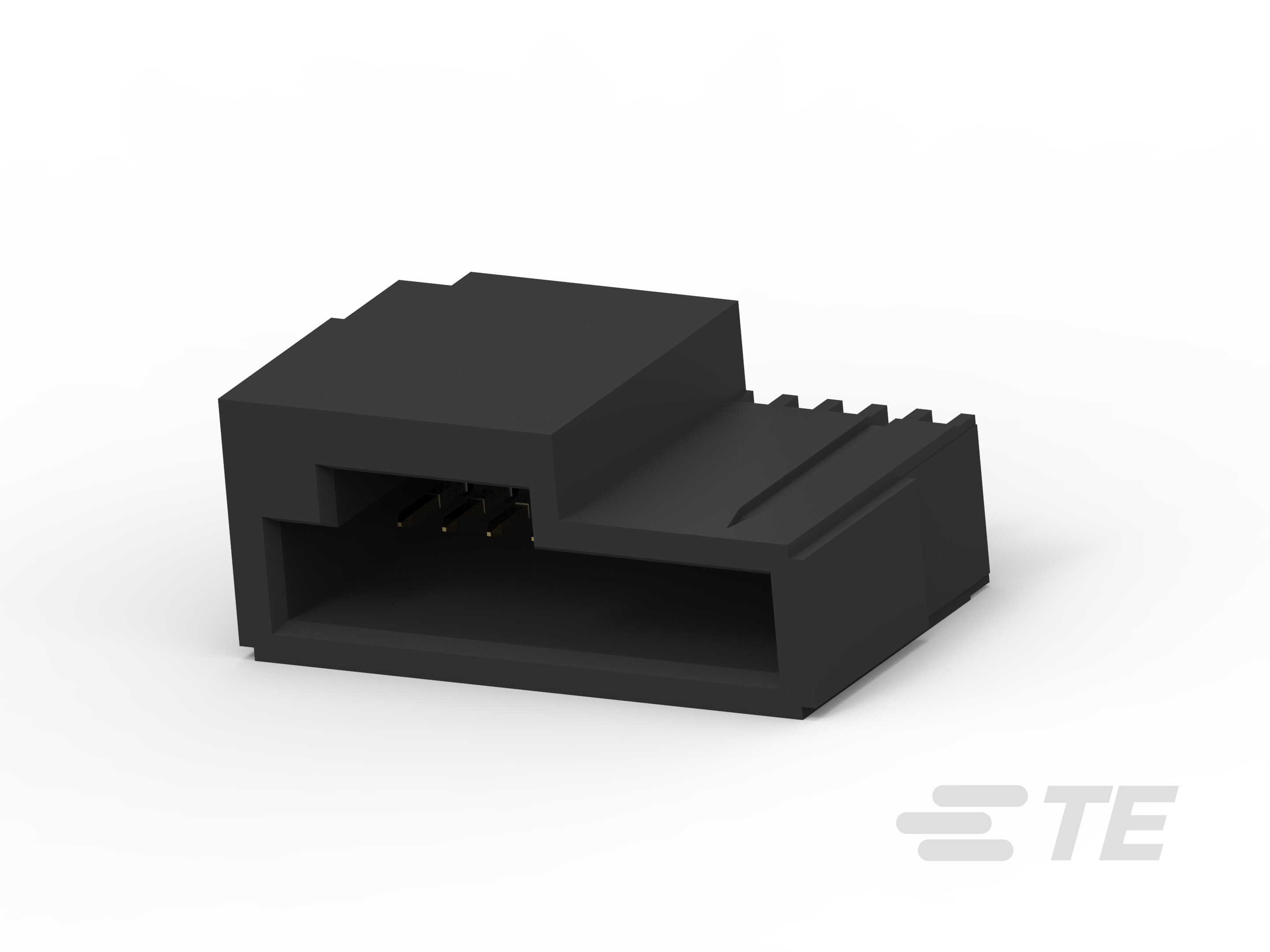

10 SYSTEM 50 HDR SRST SHRD SN
| Part | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Features | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Insulation Material | Applications | Material Flammability Rating | Shrouding | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Contact Material | Voltage Rating | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Length - Post | Contact Length - Post | Number of Positions | Fastening Type | Termination | Number of Rows | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 0.05 in | 1.27 mm | Circular | -65 ░C | 105 ░C | Header | Through Hole | Keying Slot | 0.125 in | 3.18 mm | 150 Áin | 3.81 Ám | All | Thermoplastic | Automotive General Purpose Medical Telecommunications | UL94 V-0 | Shrouded - 4 Wall | 9.91 mm | 0.39 in | Gold | Copper Alloy | 30 VAC | Black | 30 Áin | 0.76 Ám | Male Pin | 2.54 mm | 0.1 in | 10 | Latch Holder | Solder | 1 | Board to Board Cable |
