745-069 Series
Manufacturer: EDAC Inc.
Beta
⌘K

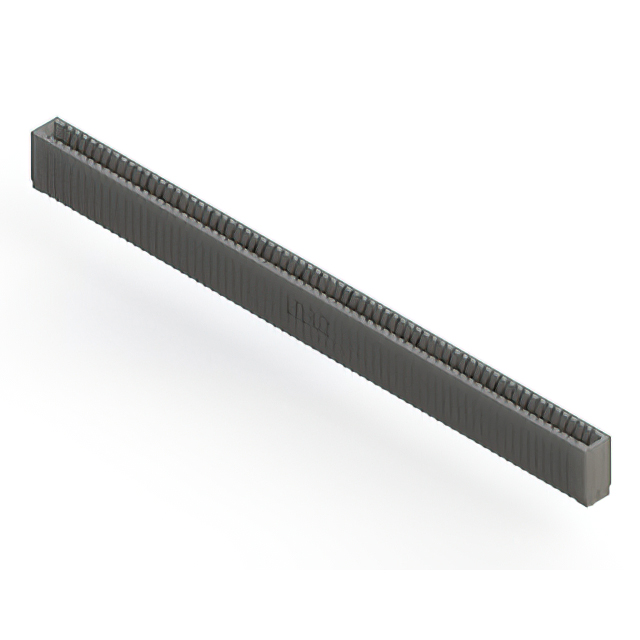

CONN EDGE SINGLE FML 69POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Type | Color | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Gender | Read Out | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | Black | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 30 Áin | 0.76 Ám | Copper Alloy | Gold | 0.1 " | 2.54 mm | 69 | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 69 | Female | Single | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | Black | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 30 Áin | 0.76 Ám | Copper Alloy | Gold | 0.1 " | 2.54 mm | 69 | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 69 | Female | Single | 1 |
