QS4A215 Series

6-Channel 4:1 Analog Mux/Demux

Manufacturer: Renesas Electronics Corporation

Catalog

6-Channel 4:1 Analog Mux/Demux

Part	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max)	Switch Circuit	Mounting Type	Multiplexer/Demultiplexer Circuit	Package / Case [custom]	Package / Case	Crosstalk	Charge Injection	Voltage - Supply, Single (V+)	On-State Resistance (Max) [Max]	-3db Bandwidth	Supplier Device Package	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]

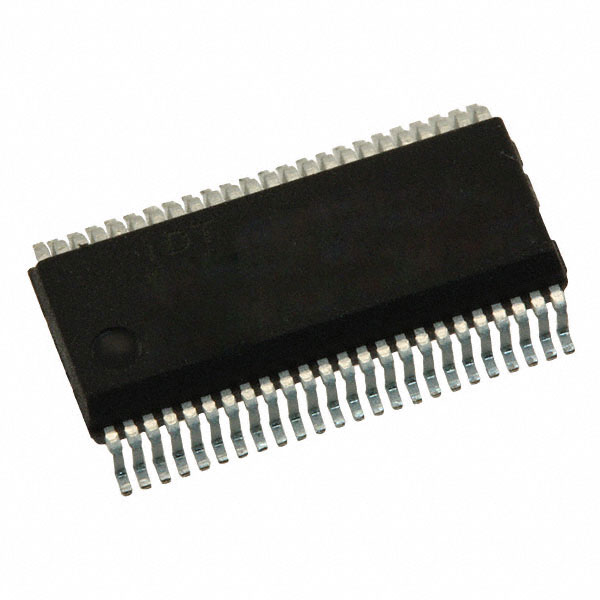

Renesas Electronics Corporation QS4A215Q1G8	6 pF	14 pF	6 ns	6 ns	10 nA	SP4T	Surface Mount	4:1	0.154 " 3.9 mm	48-FSOP	-68 dB	1.5 pC	5 V	17 Ohms	700 MHz	48-QVSOP	2	85 °C	-40 °C

Catalog

6-Channel 4:1 Analog Mux/Demux

Description

The QS4A215 is a high-performance CMOS six-channel multiplexer/ demultiplexer with individual enables. The QS4A215 with 700MHz bandwidth makes it ideal for high-performance video signal switching, audio signal switching, and telecom routing applications. High performance and low power dissipation makes this device ideal for battery operated and remote instrumentation applications. The QS4A215 operates at -40C to +85C.
