UMF105B Series

Catalog

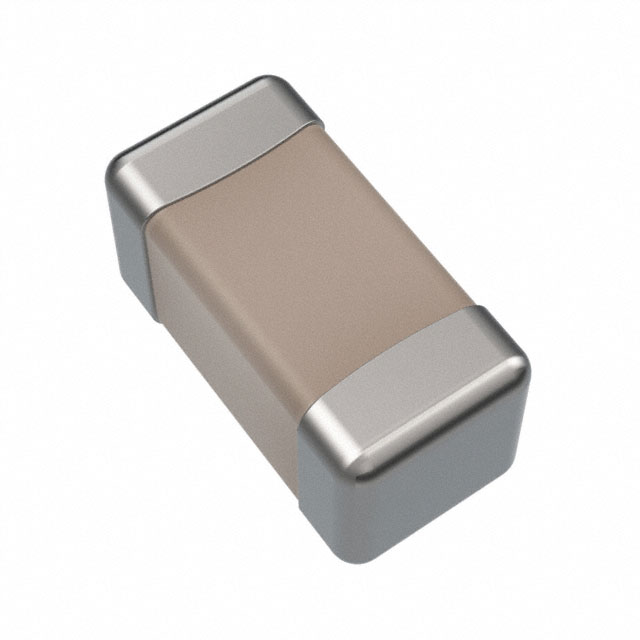

SMD MULTILAYER CERAMIC CAPACITOR, 4700 PF, 50 V, 0402 [1005 METRIC], ± 20%, X7R, M SERIES

Part	Thickness (Max)	Thickness (Max) [Max]	Applications	Mounting Type	Ratings	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Voltage - Rated	Tolerance	Capacitance
Taiyo Yuden UMF105B7472MVHF	0.55 mm	0.022 in	Automotive SMPS Filtering	MLCC Surface Mount	AEC-Q200	X7R	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	50 VDC	20 %	0.0047 µF
Taiyo Yuden UMF105B7222KVHF	0.55 mm	0.022 in	Automotive SMPS Filtering	MLCC Surface Mount	AEC-Q200	X7R	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	50 VDC	10 %	2200 pF
Taiyo Yuden UMF105B7222MVHF	0.55 mm	0.022 in	Automotive SMPS Filtering	MLCC Surface Mount	AEC-Q200	X7R	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	50 VDC	20 %	2200 pF
Taiyo Yuden UMF105B7472KVHF	0.55 mm	0.022 in	Automotive SMPS Filtering	MLCC Surface Mount	AEC-Q200	X7R	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	50 VDC	10 %	0.0047 µF
