749181 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

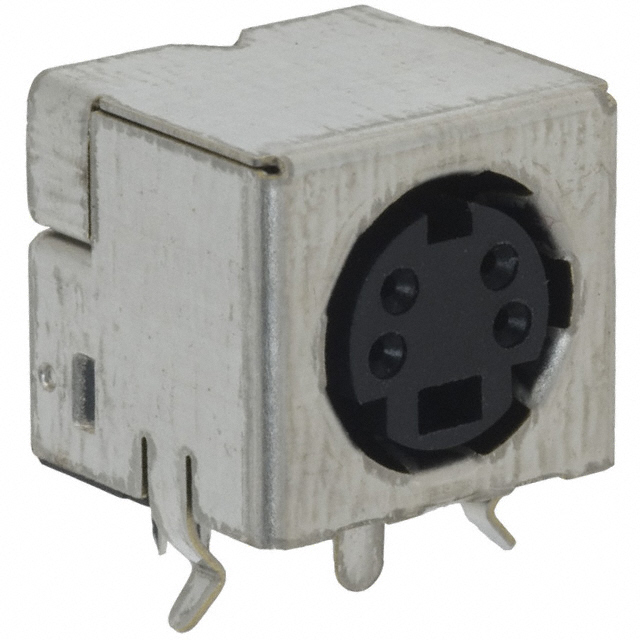

CONN RCPT FMALE MINI DIN 4P SLDR
| Part | Number of Positions | Features | Material Flammability Rating | Termination | Shell Size - Insert | Contact Finish - Mating | Orientation | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Mounting Type | Primary Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 4 | Board Lock | UL94 V-0 | Solder | Mini DIN | Gold | Keyed | 30 VDC | -55 C | 105 ░C | Receptacle Female Sockets | Push-Pull | Right Angle Through Hole | Plastic | Copper Alloy | 0.76 Ám | 30 Áin | Audio Video | Shielded |
