SRN8040 Series

Catalog

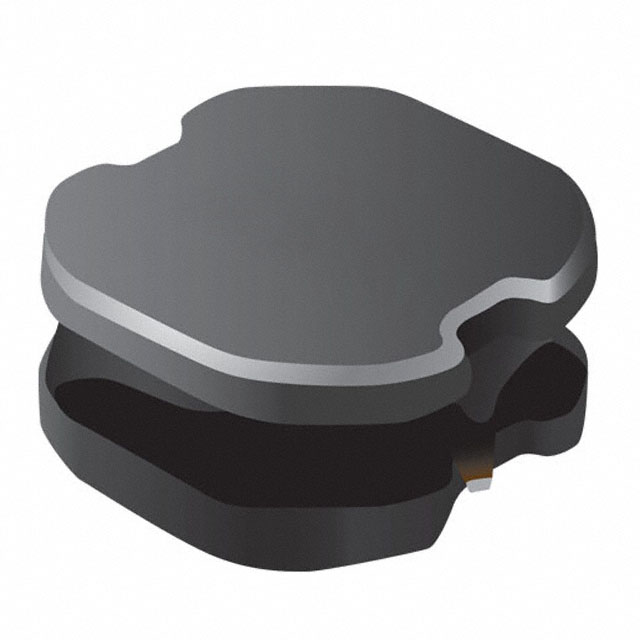

POWER INDUCTOR (SMD), 4.7 ΜH, 4.1 A, SHIELDED, 4.7 A, SRN8040 SERIES

Part	Current Rating (Amps)	Inductance	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Q @ Freq	DC Resistance (DCR)	Current - Saturation (Isat)	Type	Frequency - Self Resonant	Height - Seated (Max)	Height - Seated (Max) [Max]	Shielding	Mounting Type	Tolerance	Material - Core	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]
Bourns Inc. SRN8040-4R7Y	4.1 A	4.7 ÁH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	7.96 MHz 13	24 mOhm	4.7 A	Drum Core Wirewound	28 MHz	4 mm	0.157 in	Shielded	Surface Mount	30 %	Ferrite
Bourns Inc. SRN8040-101M	1 A	100 µH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in			1 A	Drum Core Wirewound	6 MHz	4 mm	0.157 in	Shielded	Surface Mount	20 %	Ferrite	10	796 kHz	400 mOhm
Bourns Inc. SRN8040-1R5Y	7 A	1.5 µH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	7.96 MHz 13		8.2 A	Drum Core Wirewound	55 MHz	4 mm	0.157 in	Shielded	Surface Mount	30 %	Ferrite			11 mOhm
Bourns Inc. SRN8040-220M	2.2 A	22 µH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	2.52 MHz 20	100 mOhm	2.2 A	Drum Core Wirewound	12 MHz	4 mm	0.157 in	Shielded	Surface Mount	20 %	Ferrite
Bourns Inc. SRN8040-150M	2.4 A	15 µH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	2.52 MHz 15	70 mOhm	2.7 A	Drum Core Wirewound	14 MHz	4 mm	0.157 in	Shielded	Surface Mount	20 %	Ferrite
Bourns Inc. SRN8040-3R3Y	5.6 A	3.3 µH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	7.96 MHz 13		5.5 A	Drum Core Wirewound	34 MHz	4 mm	0.157 in	Shielded	Surface Mount	30 %	Ferrite			21 mOhm
Bourns Inc. SRN8040-3R6Y	4.9 A	3.6 µH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	7.96 MHz 13		5.3 A	Drum Core Wirewound	32 MHz	4 mm	0.157 in	Shielded	Surface Mount	30 %	Ferrite
Bourns Inc. SRN8040-R50Y	10 A	500 nH	100 kHz	125 °C	-40 C	Nonstandard	8 mm	0.315 in	8 mm	0.315 in	7.96 MHz 13			Drum Core Wirewound	125 MHz	4 mm	0.157 in	Shielded	Surface Mount	30 %	Ferrite			7 mOhm
