2103177 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PLUG ASSY, KEY D, TA,CPA, HVA280-2PHI XE

Part	Features	Fastening Type	Insulation Material	Connector Type	Mounting Type	Note	Pitch [x]	Pitch [x]	Contact Termination	Number of Rows	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]

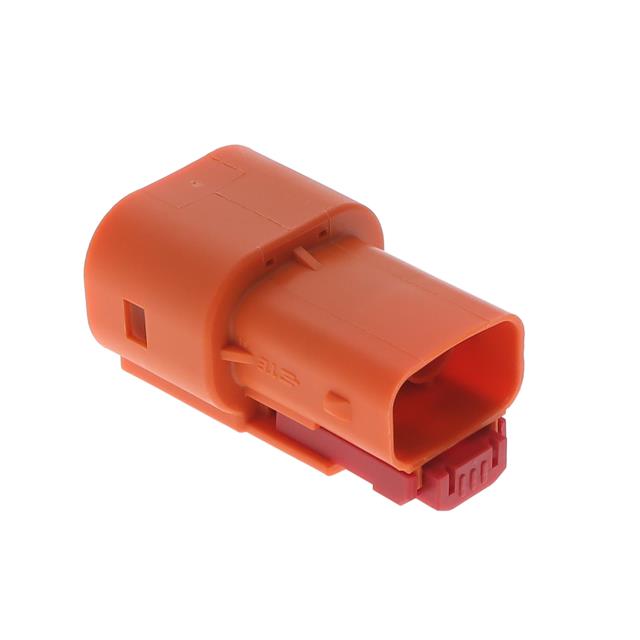

TE Connectivity Raychem Cable Protection 2103177-4	Connector Position Assurance (CPA) Sealed	Latch Lock	Polyamide (PA66) Nylon 6/6 Glass Filled	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C

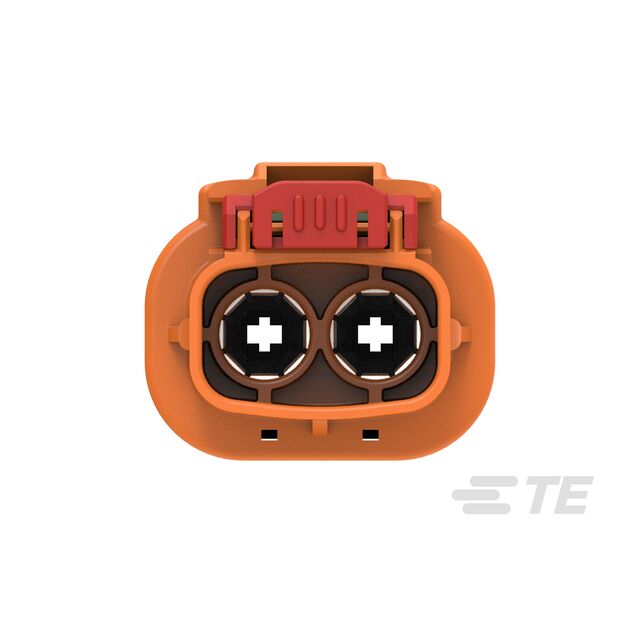

TE Connectivity Raychem Cable Protection 2103177-2	Connector Position Assurance (CPA) Sealed	Latch Lock	Polyamide (PA66) Nylon 6/6 Glass Filled	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C
TE Connectivity Raychem Cable Protection 1-2103177-2	Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C

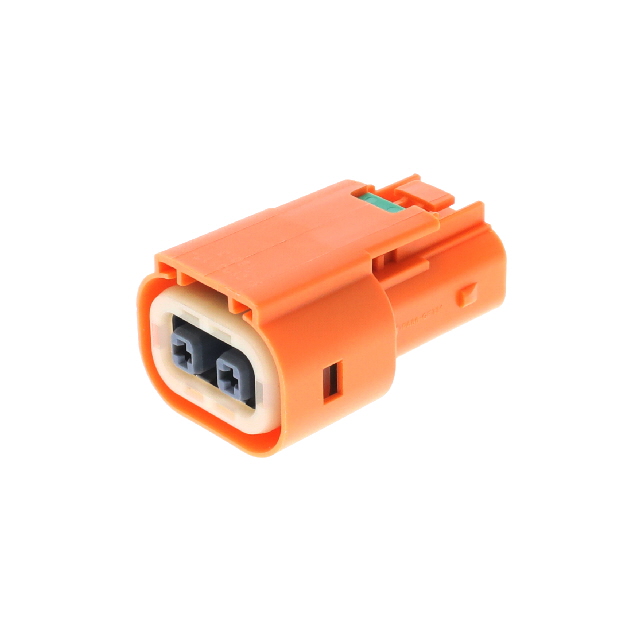

TE Connectivity Raychem Cable Protection 5-2103177-1	Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C
TE Connectivity Raychem Cable Protection 2103177-1	Connector Position Assurance (CPA) Sealed	Latch Lock	Polyamide (PA66) Nylon 6/6 Glass Filled	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C

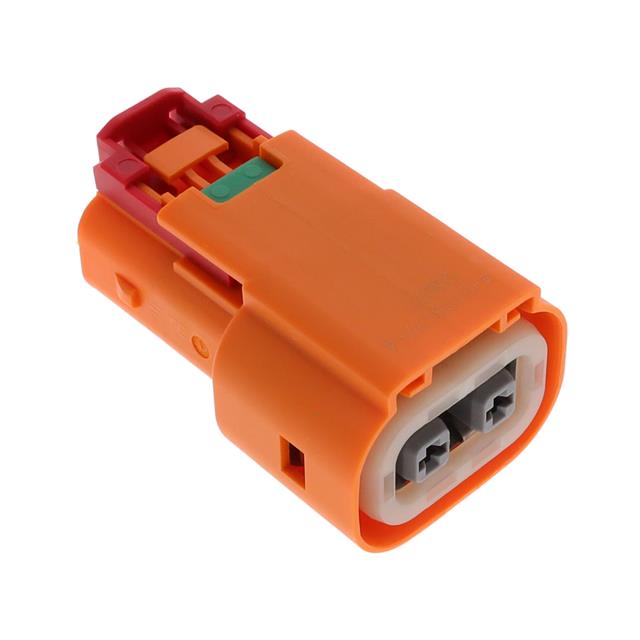

TE Connectivity Raychem Cable Protection 4-2103177-4	Connector Position Assurance (CPA) Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C

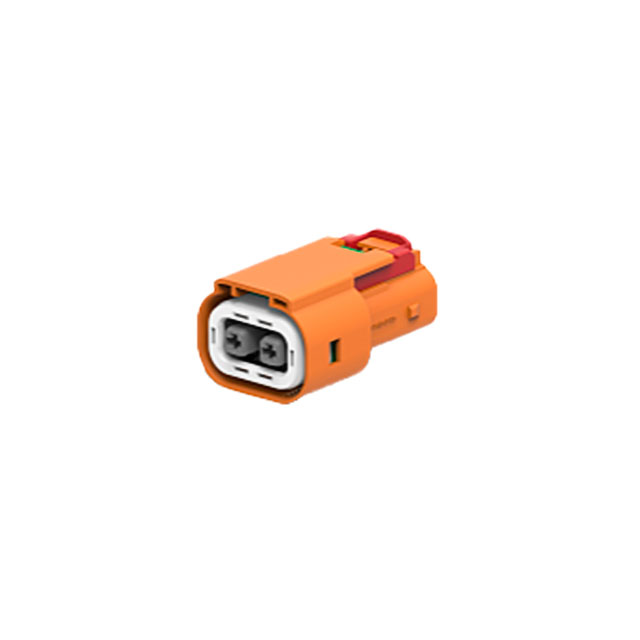

TE Connectivity Raychem Cable Protection 4-2103177-6	Connector Position Assurance (CPA) Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C
TE Connectivity Raychem Cable Protection 5-2103177-4	Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	Contacts Not Included	10.4 mm	0.409 in	Crimp	1	2	125 °C	-40 °C
