853S111BI Series

Low Skew, 1-to-10 Differential-to-2.5V, 3.3V LVPECL / ECL Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew, 1-to-10 Differential-to-2.5V, 3.3V LVPECL / ECL Fanout Buffer

Part	Operating Temperature [Max]	Operating Temperature [Min]	Input	Package / Case	Number of Circuits	Type	Mounting Type	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Frequency - Max [Max]
Renesas Electronics Corporation 853S111BYILFT	85 °C	-40 °C	LVDS LVPECL SSTL	32-TQFP Exposed Pad	1	Fanout Buffer (Distribution) Multiplexer	Surface Mount	10	2	32-PTQFP-EP (7x7)	3.8 V	2.375 V	ECL LVPECL	2.5 GHz
Renesas Electronics Corporation 853S111BYILF	85 °C	-40 °C	LVDS LVPECL SSTL	32-TQFP Exposed Pad	1	Fanout Buffer (Distribution) Multiplexer	Surface Mount	10	2	32-PTQFP-EP (7x7)	3.8 V	2.375 V	ECL LVPECL	2.5 GHz

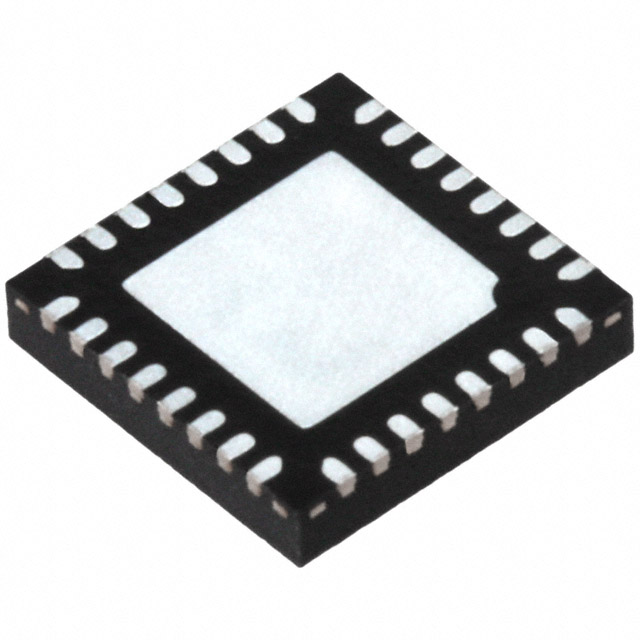

Renesas Electronics Corporation 853S111BKILFT	85 °C	-40 °C	LVDS LVPECL SSTL	32-VFQFN Exposed Pad	1	Fanout Buffer (Distribution) Multiplexer	Surface Mount	10	2	32-VFQFN (5x5)	3.8 V	2.375 V	ECL PECL	2.5 GHz
Renesas Electronics Corporation 853S111AYILF	85 °C	-40 °C	CML LVDS LVPECL SSTL	32-LQFP	1	Fanout Buffer (Distribution) Multiplexer	Surface Mount	10	2	32-TQFP (7x7)	3.465 V	2.375 V	ECL PECL	2.5 GHz

Catalog

Low Skew, 1-to-10 Differential-to-2.5V, 3.3V LVPECL / ECL Fanout Buffer

Description

The 853S111BI is a low skew, high performance 1-to-10 Differential-to-2.5V/ 3.3V LVPECL/ECL Fanout Buffer. The 853S111BI is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 853S111BI ideal for those clock distribution applications demanding well defined performance and repeatability.
