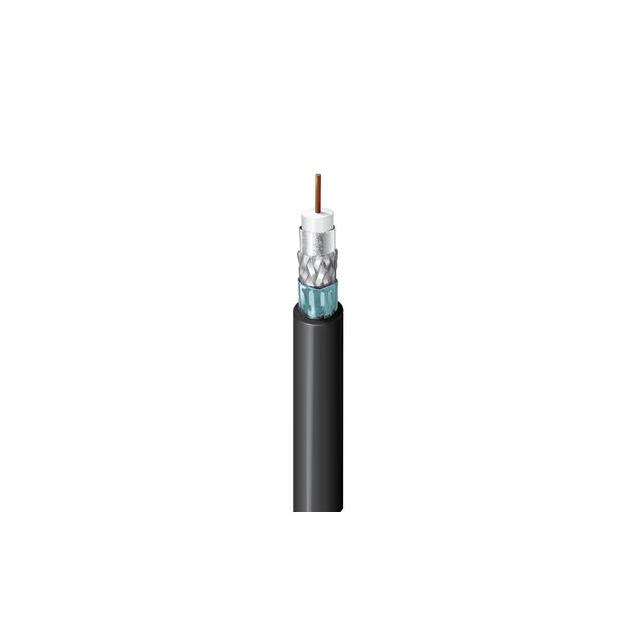

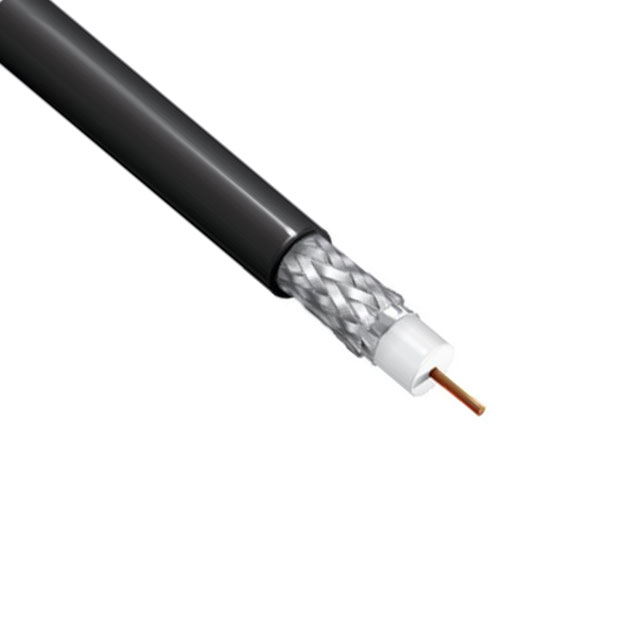

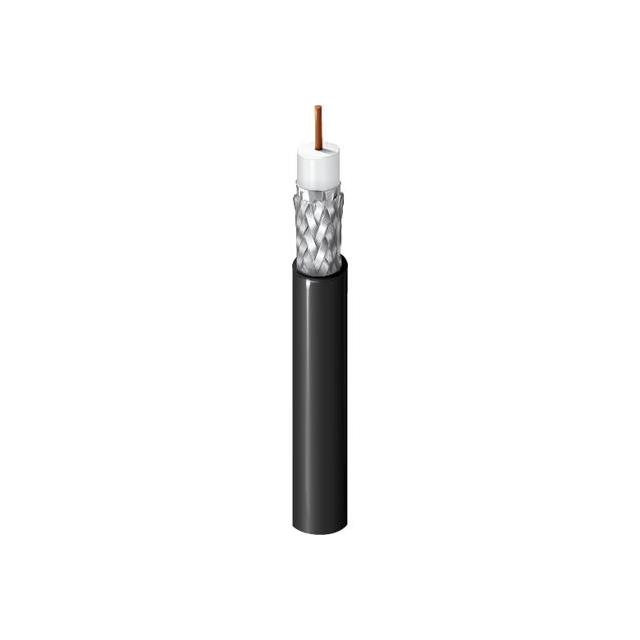

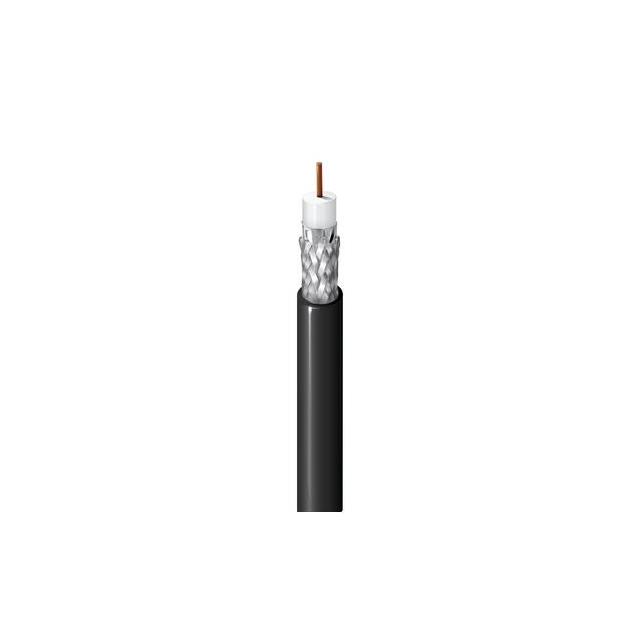

1694A Series
Manufacturer: Belden Inc.
Beta
⌘K
#18 PE/GIFHDPE SH FR PVC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | VoP, Velocity of Propagation | Shield Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Cable Group | Features | Wire Gauge | Jacket (Insulation) Material | Conductor Strand | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Red | Braid Foil | 0.274 in | 6.96 mm | 304.8 m | 1000 ft | Coaxial |
 Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | White | Braid Foil | 0.274 in | 6.96 mm | 304.8 m | 1000 ft | Coaxial |
 Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Violet | Braid Foil | 0.274 in | 6.96 mm | Coaxial | ||
 Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Red | Braid Foil | 0.274 in | 6.96 mm | Coaxial | ||
Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Yellow | Braid Foil | 0.274 in | 6.96 mm | 304.8 m | 1000 ft | Coaxial |
Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Brown | Braid Foil | 0.274 in | 6.96 mm | Coaxial | ||
 Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Green | Braid Foil | 0.274 in | 6.96 mm | Coaxial | ||
Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | White | Braid Foil | 0.274 in | 6.96 mm | 304.8 m | 1000 ft | Coaxial |
 Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Blue | Braid Foil | 0.274 in | 6.96 mm | 304.8 m | 1000 ft | Coaxial |
Belden Inc. | 75 ░C | -30 ░C | Copper Bare | 82 | Aluminum Polyester Copper Tinned | 95 % 100 % | 0.18 in | 4.57 mm | RG-6 | UV Resistant | 18 AWG | Poly-Vinyl Chloride (PVC) | Solid | Gray | Braid Foil | 0.274 in | 6.96 mm | 304.8 m | 1000 ft | Coaxial |
