Lc0 Series Series

Sensor Hardware & Accessories CABLES Small Size Precision Snap-acting Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sensor Hardware & Accessories CABLES Small Size Precision Snap-acting Switch

...

Part	Electrical Life	Actuator Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Voltage Rating - AC	Circuit	Differential Travel	Differential Travel	Termination Style	Switch Function	Operating Position	Operating Position	Mounting Type	Features	Pretravel	Pretravel	Overtravel	Overtravel	Release Force	Current Rating (Amps)	Operating Position [x]	Operating Position [x]
Littelfuse/Commercial Vehicle Products LCGGF5T23HCUE	100000 Cycles	Lever Simulated Roller	30 V	-25 °C	85 °C	28 gf	125 V	SPDT	0.062 in	1.6 mm	Quick Connect - 0.110" (2.8mm)	On-Mom	11.6 mm	0.455 in	Chassis Mount	Epoxy Sealed Terminals	0.252 in	6.4 mm	0.049 in	1.25 mm	3 gf
Littelfuse/Commercial Vehicle Products LCGGF5P00EW	6000 Cycles	Round (Pin Plunger)	30 V	-25 °C	85 °C	142 gf	125 V	SPST-NC	0.004 in	0.1 mm	Solder Lug	On-Mom	8.4 mm	0.33 in	Chassis Mount		0.03 in	0.8 mm	0.01 in	0.25 mm	28 gf
Littelfuse/Commercial Vehicle Products LCGDX1P00EC	6000 Cycles	Round (Pin Plunger)	30 V	-25 °C	85 °C	94 gf	125 V	SPDT	0.004 in	0.1 mm	Solder Lug	On-Mom	8.4 mm	0.33 in	Chassis Mount		0.03 in	0.8 mm	0.01 in	0.25 mm	14 gf
Littelfuse/Commercial Vehicle Products LCGGL9P00SCE	6000 Cycles	Round (Pin Plunger)		-25 °C	85 °C	142 gf	125 V	SPDT	0.004 in	0.1 mm	PC Pin	On-Mom	8.4 mm	0.33 in	Through Hole	Epoxy Sealed Terminals	0.03 in	0.8 mm	0.01 in	0.25 mm	28 gf	5 A
Littelfuse/Commercial Vehicle Products LCGGM1T10SC	6000 Cycles	Lever Straight		-25 °C	85 °C	48 gf	125 V	SPDT			PC Pin	On-Mom			Through Hole		0.14 in	3.6 mm	0.029 in	0.74 mm	6 gf	10 A	0.34 in	8.6 mm
Littelfuse/Commercial Vehicle Products LCGDF5T23SC	6000 Cycles	Lever Simulated Roller	30 V	-25 °C	85 °C	15 gf	125 V	SPDT	0.062 in	1.6 mm	PC Pin	On-Mom	11.6 mm	0.455 in	Through Hole		0.252 in	6.4 mm	0.049 in	1.25 mm	1 gf
Littelfuse/Commercial Vehicle Products LCGDL9P00SC	6000 Cycles	Round (Pin Plunger)		-25 °C	85 °C	94 gf	125 V	SPDT	0.004 in	0.1 mm	PC Pin	On-Mom	8.4 mm	0.33 in	Through Hole		0.03 in	0.8 mm	0.01 in	0.25 mm	14 gf	5 A
Littelfuse/Commercial Vehicle Products LCGGL9T23SC	6000 Cycles	Lever Simulated Roller		-25 °C	85 °C	28 gf	125 V	SPDT	0.062 in	1.6 mm	PC Pin	On-Mom	11.6 mm	0.455 in	Through Hole		0.252 in	6.4 mm	0.049 in	1.25 mm	3 gf	5 A

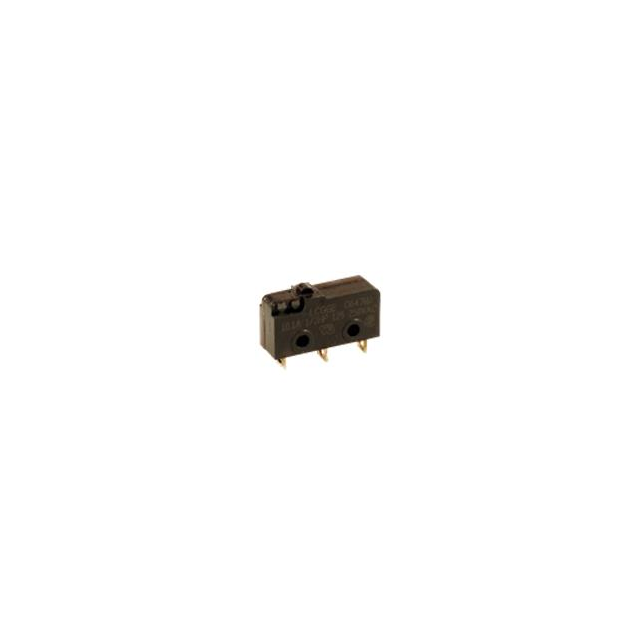

Littelfuse/Commercial Vehicle Products LCGDF5P00HC	6000 Cycles	Round (Pin Plunger)	30 V	-25 °C	85 °C	94 gf	125 V	SPDT	0.004 in	0.1 mm	Quick Connect - 0.110" (2.8mm)	On-Mom	8.4 mm	0.33 in	Chassis Mount		0.03 in	0.8 mm	0.01 in	0.25 mm	14 gf
Littelfuse/Commercial Vehicle Products LCGDL9T10LC	6000 Cycles	Lever Straight		-25 °C	85 °C	28 gf	125 V	SPDT			PC Pin	On-Mom			Through Hole Right Angle		0.14 in	3.6 mm	0.029 in	0.74 mm	3 gf	5 A	0.34 in	8.6 mm

Catalog

Sensor Hardware & Accessories CABLES Small Size Precision Snap-acting Switch

Key Features

• Compact design

• Long life and high electrical capacity

• Quick connect, wire lead or PC mounting

Description

Those designing motorized equipment, sump pumps and thermostatic controls need a switch that’s compact, while still offering a long lifecycle and a high electrical capacity. C&K’s LC series small size precision snap-acting switch gives designers these features, as well as a quick connect solution, along with their choice of wire lead or PC mounting.
