A-DF 37 Series

Catalog

CONN D-SUB RCPT 37POS VERT SLDR

Part	Color	Dielectric Material	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Current Rating (Amps)	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Material Flammability Rating	Connector Type	Number of Rows [custom]	Termination	Contact Finish Thickness	Flange Feature	Connector Style	Shell Material, Finish	Backset Spacing	Backset Spacing	Features

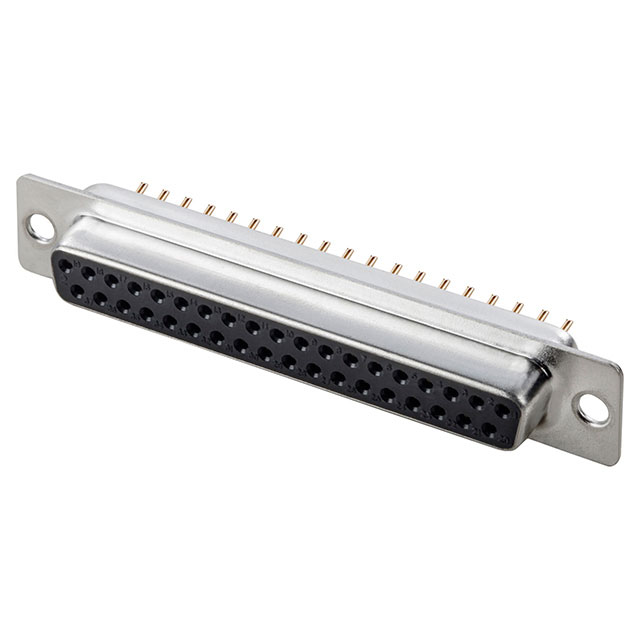

Assmann WSW Components A-DF 37 PP/Z-BK	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	250 VAC	-55 C	105 ░C	Through Hole	Gold	3 A	37	4	DC C	Signal	UL94 V-0	Receptacle Female Sockets	2	Solder	Flash	Housing/Shell (Unthreaded)	D-Sub

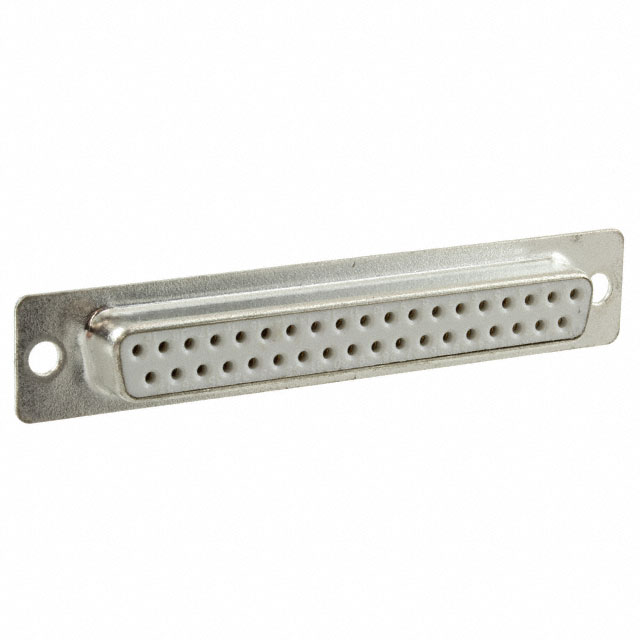

Assmann WSW Components A-DF 37 LL/Z	White	Polybutylene Terephthalate (PBT) Glass Filled	Brass	250 V	-55 C	105 ░C	Free Hanging (In-Line)	Gold	3 A	37	4	DC C	Signal	UL94 V-0	Receptacle Female Sockets	2		Flash	Housing/Shell (Unthreaded)	D-Sub	Steel

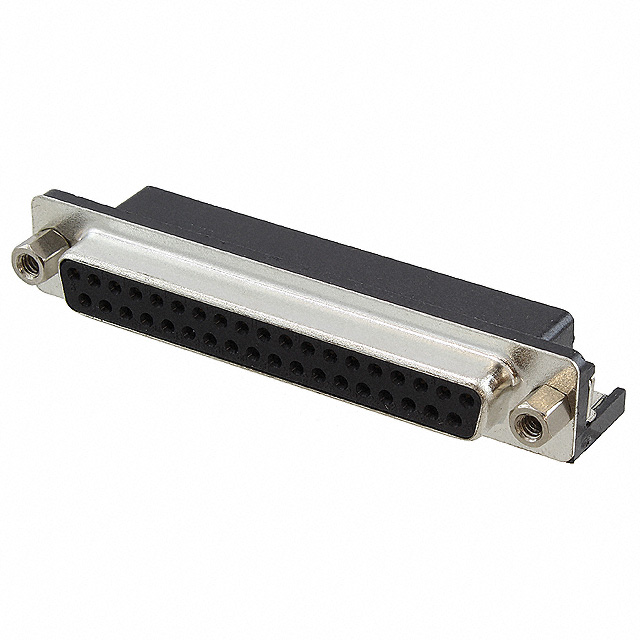

Assmann WSW Components A-DF 37 A/KG-T2S	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	250 V	-55 C	105 ░C	Right Angle Through Hole	Gold	3 A	37	4	DC C	Signal	UL94 V-0	Receptacle Female Sockets	2	Solder	Flash	4-40 Mating Side Female Screwlock	D-Sub		0.319 in	8.1 mm	Board Lock
Assmann WSW Components A-DF 37 PP/Z	Gray	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	250 V	-20 ░C	105 ░C	Through Hole	Gold	3 A	37	4	DC C	Signal	UL94 V-0	Receptacle Female Sockets	2	Solder	Flash	Housing/Shell (Unthreaded)	D-Sub
