K31F1C-P Series
Manufacturer: ODU
Beta
⌘K

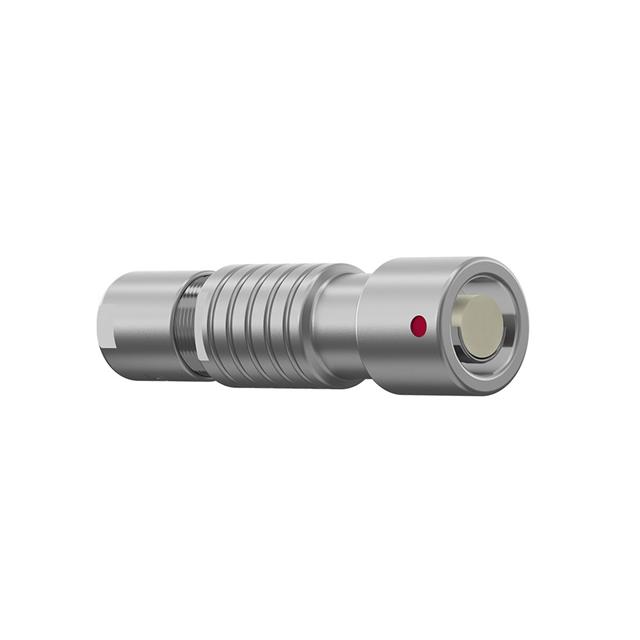

ODU MINI-SNAP INLINE RECEPTACLE,
| Part | Shell Size - Insert | Current Rating (Amps) | Backshell Material, Plating | Connector Type | Shielding | Mounting Type | Ingress Protection | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Insert Material | Contact Finish - Mating | Contact Material | Color | Applications | Primary Material | Features | Fastening Type | Shell Material | Number of Positions | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Orientation [custom] | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 7.5 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 4 | 500 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |
1 | 7.5 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.059 " | 0.079 " | 2 mm | 1.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 7 | 333 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |
1 | 4 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 12 | 366 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |
1 | 4 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.079 in 2 mm | 0.098 in 2.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 12 | 366 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |||
1 | 7.5 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 5 | 450 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |
1 | 4 A | Brass Chrome over Nickel | Receptacle Female Sockets | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.177 in | 0.197 in | 5 mm | 4.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 12 | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |||
1 | 4 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.138 " | 0.157 in | 4 mm | 3.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 12 | 366 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |
1 | 12 Amps | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.039 in | 0.059 in | 1.5 mm | 1 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 500 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | ||
1 | 7.5 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.039 in | 0.059 in | 1.5 mm | 1 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 8 | 300 VDC | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel | |
1 | 7.5 A | Brass Chrome over Nickel | Receptacle Female Sockets | Unshielded | Free Hanging (In-Line) | IP68 - Dust Tight Waterproof | 0.177 in | 0.197 in | 5 mm | 4.5 mm | Polyetheretherketone (PEEK) | Gold | Brass | Silver | Industrial Medical Military Testing Equipment & Measurement | Metal | Backshell | Push-Pull | Brass | 4 | 500 V | 120 °C | -40 C | UL94 V-0 | 1 | Chrome over Nickel |
