1102328 Series

Catalog

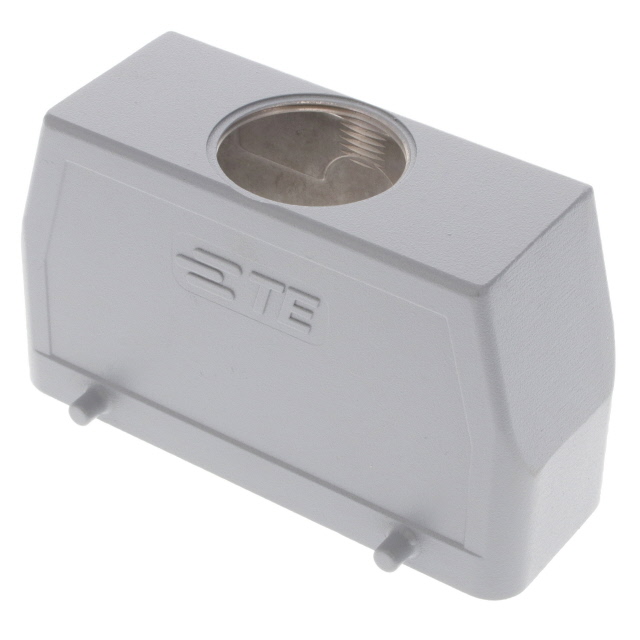

HOOD ALUMINUM DIE CAST LOOSE PIECE

Part	Lock Location	Connector Type	Size	Style	Housing Finish	Ingress Protection	Housing Material	Thread Size	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
TE Connectivity AMP Connectors 2-1102328-6	Locking Clip (2) on Base Bottom	Hood	8	Top Entry	Aluminum Oxide	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	PG29	Black	70 mm	43 mm	4.724 in	120 mm	1.693 "	2.756 "
TE Connectivity AMP Connectors 1-1102328-6	Locking Clip (2) on Base Bottom	Hood	8	Top Entry	Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	PG29	Gray	70 mm	43 mm	4.724 in	120 mm	1.693 "	2.756 "
