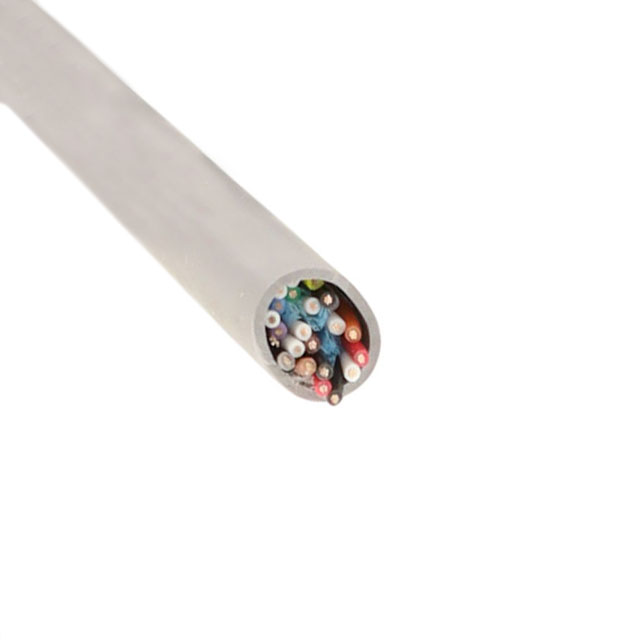

M4758 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 22COND 24AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket Color | Ratings | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Number of Conductors | Cable Type | Conductor Material | Length [x] | Length [x] | Features | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Slate | UL Style 2464 | 24 AWG | 300 VDC | 9.14 mm | 0.36 in | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 7 | 32 AWG | Foil | 22 | Multi-Pair | Copper Tinned | 100 ft | 30.5 m | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Slate | UL Style 2464 | 24 AWG | 300 VDC | 9.14 mm | 0.36 in | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 7 | 32 AWG | Foil | 22 | Multi-Pair | Copper Tinned | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
