6015 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

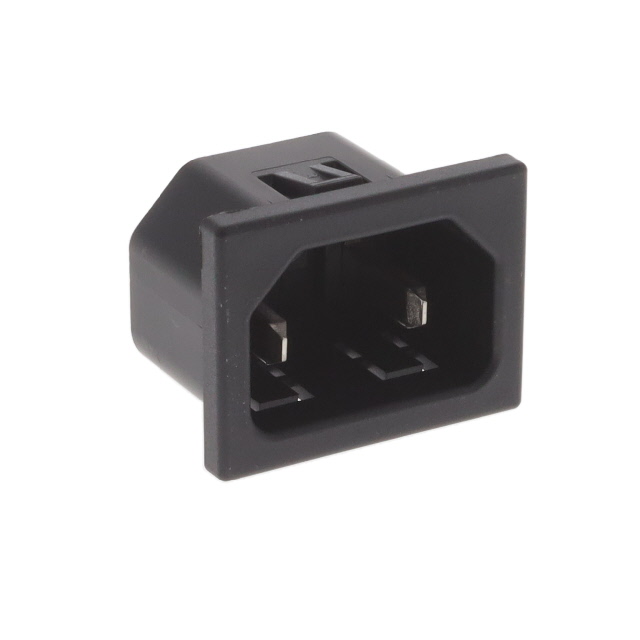

AC POWER ENTRY MODULES 6015 APPLIANCE INLET 10A 70C
| Part | Current Rating - Appliance Inlet | Filter Type | Number of Positions | Voltage Rating - Appliance Inlet | Ingress Protection | Mounting Type | Panel Thickness | Panel Thickness | Material Flammability Rating | Accomodates a Fuse | Termination | Termination | Termination | Connector Style | Approval Agency | Connector Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 10 A | Unfiltered - Commercial | 2 | 250 VAC | IP20 | Panel Mount Snap-In | 0.118 " | 3 mm | UL94 V-0 | 6.3 mm | Quick Connect | 0.25 " | IEC 320-C18 | CCC cCSAus ENEC | Receptacle Male Blades | 27.5 mm | 20 mm | |
 SCHURTER Inc. | 10 A | Unfiltered - Commercial | 2 | 250 VAC | IP20 | Panel Mount Snap-In | 0.118 " | 3 mm | UL94 V-0 | Solder Eyelet | IEC 320-C18 | CCC cCSAus ENEC | Receptacle Male Blades | 27.5 mm | 20 mm |
