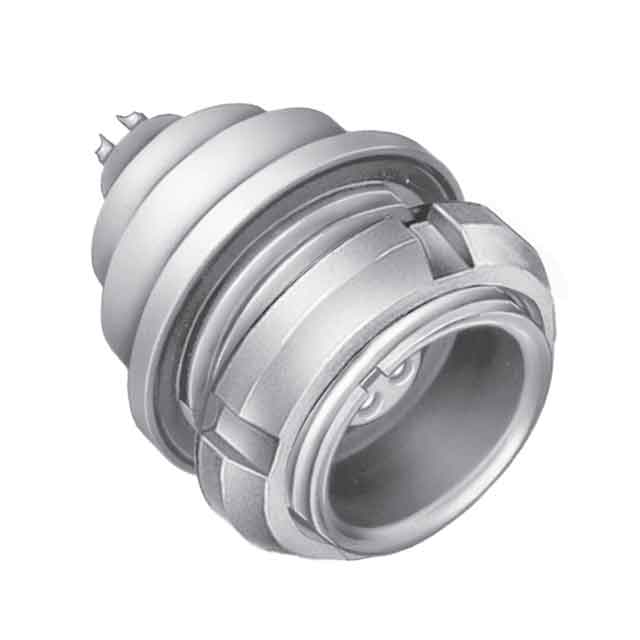

EEG.1K Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Material	Mounting Feature	Shell Size - Insert	Shielding	Primary Material	Contact Finish - Mating	Mounting Type	Color	Fastening Type	Orientation [custom]	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Ingress Protection	Shell Finish	Number of Positions	Shell Material	Shell Size - Insert [custom]
LEMO EEG.1K.308.CLV	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	308	Shielded	Metal	Gold	Panel Mount Right Angle Through Hole	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Solder	5 A	IP66 IP68	Chrome	8	Brass

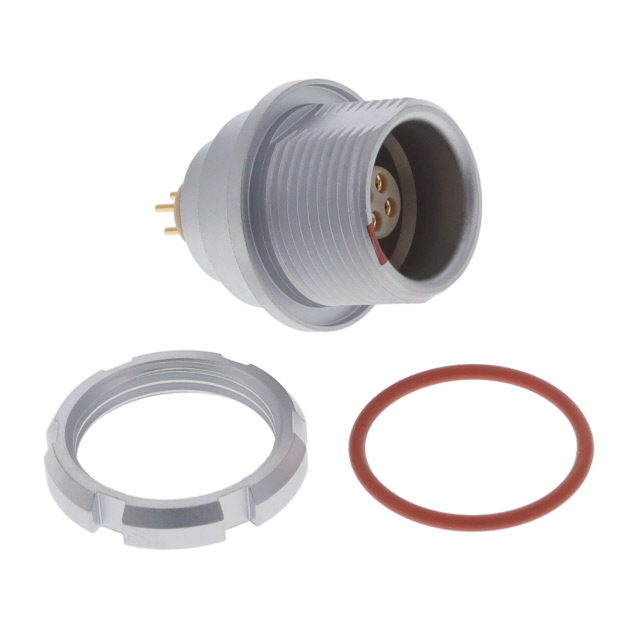

LEMO EEG.1K.304.CLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	304	Shielded	Metal	Gold	Panel Mount Through Hole	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Solder	10 A	IP66 IP68	Chrome	4	Brass
LEMO EEG.1K.314.CLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	314	Shielded	Metal	Gold	Panel Mount Through Hole	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Solder	2 A	IP66 IP68	Chrome	14	Brass
LEMO EEG.1K.304.CYM	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	304	Shielded	Metal	Gold	Panel Mount	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Crimp	10 A	IP66 IP68	Chrome	4	Brass

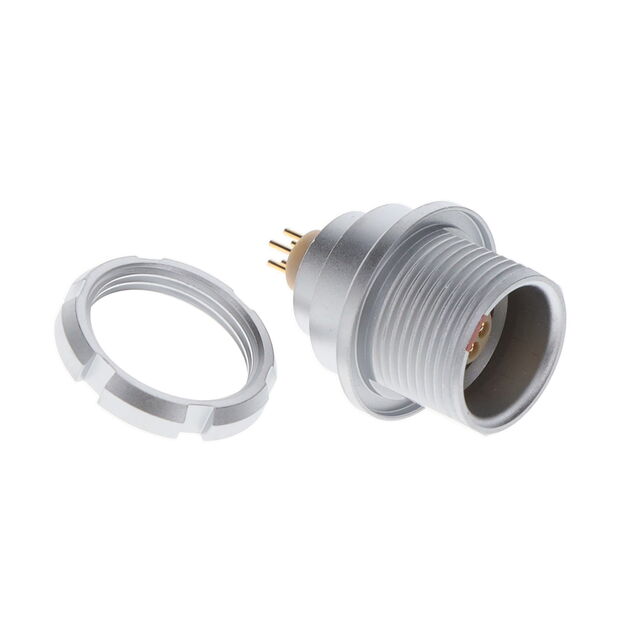

LEMO EEG.1K.305.CLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	305	Shielded	Metal	Gold	Panel Mount Through Hole	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Solder	9 A	IP66 IP68	Chrome	5	Brass
LEMO EEG.1K.308.KLL	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	308	Shielded	Metal	Gold	Panel Mount	Black	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C		5 A	IP66 IP68		8	Brass
LEMO EEG.1K.307.CLL	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut		Shielded	Metal	Gold	Panel Mount	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C		7 A	IP66 IP68	Chrome	7	Brass	307

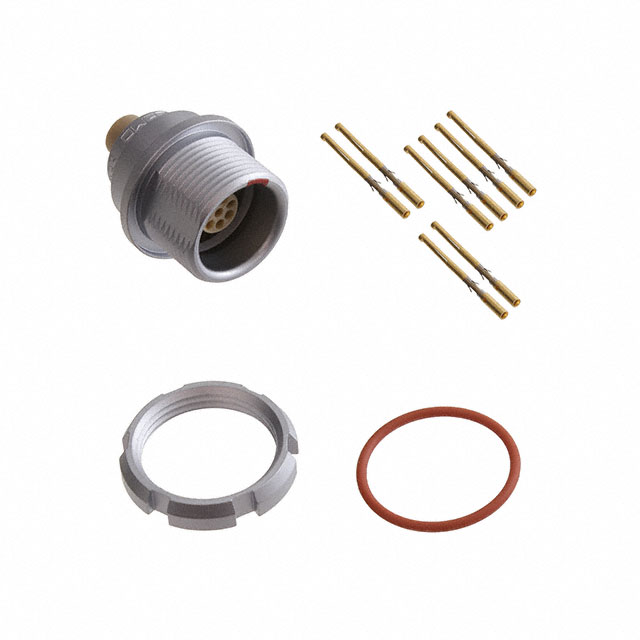

LEMO EEG.1K.308.CYM	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	308	Shielded	Metal	Gold	Panel Mount	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Crimp	5 A	IP66 IP68	Chrome	8	Brass
LEMO EEG.1K.314.CLV	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	314	Shielded	Metal	Gold	Panel Mount Right Angle Through Hole	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C	Solder	2 A	IP66 IP68	Chrome	14	Brass

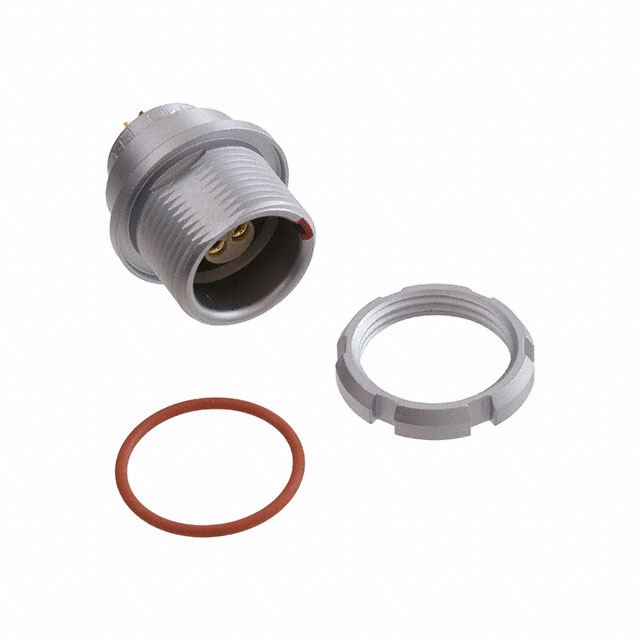

LEMO EEG.1K.302.CLL	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Front Side Nut	302	Shielded	Metal	Gold	Panel Mount	Silver	Push-Pull	G	Receptacle Female Sockets	UL94 V-0	200 °C	-55 C		15 A	IP66 IP68	Chrome	2	Brass
