9GV0412 Series

Catalog

FAN AXIAL 40X28MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Noise	Voltage - Rated	Air Flow	Air Flow	Width [x]	Power (Watts)	Approval Agency	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Features	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Bearing Type
Sanyo Denki America Inc. 9GV0412J301	Plastic	600 mA	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	55 dB(A)	12 VDC	24 CFM	0.672 mł/min	28 mm	7.2 W	CSA TUV UL	0.111 lb	50.35 g	330 Pa	1.325 in H2O	Speed Sensor (Tach)	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	14700 RPM	Ball
Sanyo Denki America Inc. 9GV0412H3011	Plastic	0.31 A	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	49 dB	12 VDC	18.7 CFM	0.524 mł/min	28 mm	3.72 W	CSA TUV UL	0.111 lb	50.35 g	207 Pa	0.831 in H2O	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	11600 RPM	Ball
Sanyo Denki America Inc. 9GV0412J302	Plastic	600 mA	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	55 dB(A)	12 VDC	24 CFM	0.672 mł/min	28 mm	7.2 W	CSA TUV UL	0.111 lb	50.35 g	330 Pa	1.325 in H2O		2 Wire Leads		60 °C		-10 °C	14700 RPM	Ball
Sanyo Denki America Inc. 9GV0412G302	Plastic	0.47 A	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	52 dB	12 VDC	21.1 CFM	0.591 m³/min	28 mm	5.64 W	CSA TUV UL	0.111 lb	50.35 g	260 Pa	1.044 in H2O		2 Wire Leads		60 °C		-10 °C	13000 RPM	Ball
Sanyo Denki America Inc. 9GV0412J3D011	Plastic	600 mA	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	55 dB(A)	12 VDC	24 CFM	0.672 mł/min	28 mm	7.2 W	CSA TUV UL	0.111 lb	50.35 g	330 Pa	1.325 in H2O	Locked Rotor Sensor	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	14700 RPM	Ball
Sanyo Denki America Inc. 9GV0412G301	Plastic	0.47 A	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	52 dB	12 VDC	21.2 CFM	0.594 m³/min	28 mm	5.64 W	CSA TUV UL	0.111 lb	50.35 g	260 Pa	1.044 in H2O	Speed Sensor (Tach)	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	13000 RPM	Ball

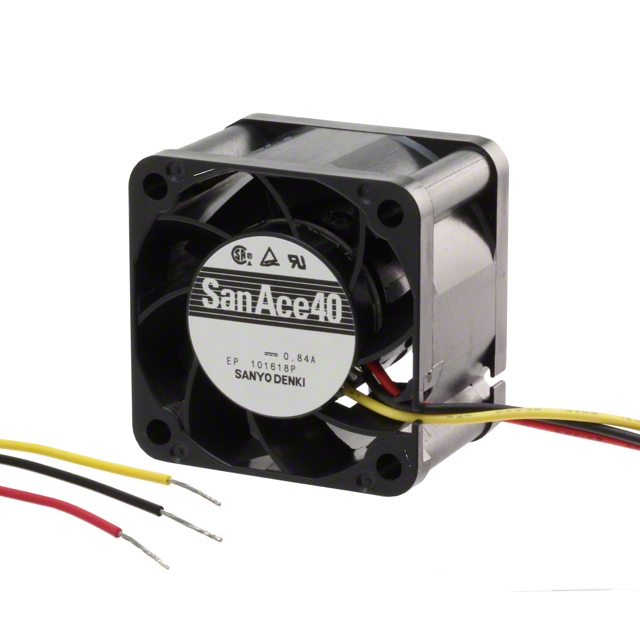

Sanyo Denki America Inc. 9GV0412K3D01	Plastic	0.84 A	Plastic	10.8 VDC	12.6 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	58 dB(A)	12 VDC	26.8 CFM	0.75 mł/min	28 mm	10.08 W	CSA TUV UL	0.111 lb	50.35 g	415.5 Pa	1.668 in H2O	Locked Rotor Sensor	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	16500 RPM	Ball
Sanyo Denki America Inc. 9GV0412C3D01	Plastic	150 mA	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	41 dB	12 VDC	13.1 CFM	0.367 mł/min	28 mm	1.8 W	CSA TUV UL	0.111 lb	50.35 g	100.1 Pa	0.402 in H2O	Locked Rotor Sensor	3 Wire Leads		70 °C		-20 ░C	8300 RPM	Ball

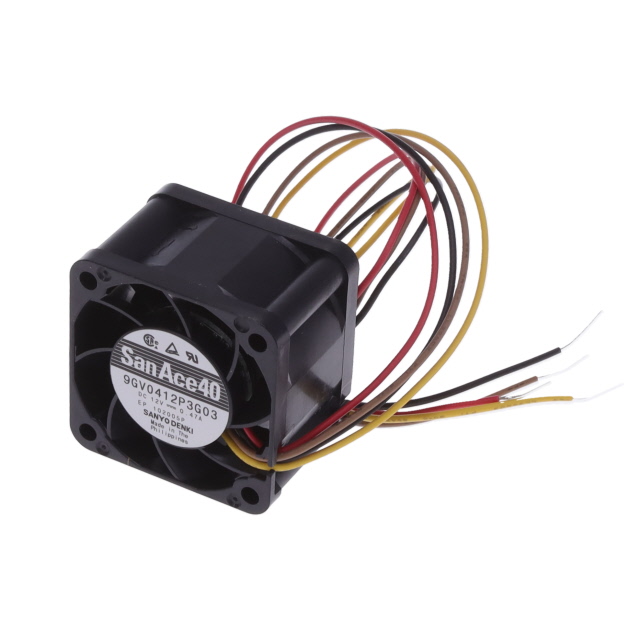

Sanyo Denki America Inc. 9GV0412P3G03	Plastic	0.47 A	Plastic	10.8 VDC	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	52 dB	12 VDC	21.1 CFM	0.591 m³/min	28 mm	5.64 W	CSA TUV UL	0.111 lb	50.35 g	260 Pa	1.044 in H2O	PWM Control Speed Sensor (Tach)	4 Wire Leads		60 °C		-10 °C	13000 RPM	Ball
Sanyo Denki America Inc. 9GV0412P3J031	Plastic	600 mA	Plastic	7 V	13.2 VDC	40000 Hrs	40 mm	40 mm	Tubeaxial	55 dB(A)	12 VDC	24 CFM	0.672 mł/min	28 mm	7.2 W	CSA TUV UL	0.111 lb	50.35 g	330 Pa	1.325 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	14700 RPM	Ball
