6422.0053 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Switch Features	Approval Agency	Termination	Termination	Termination	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Material Flammability Rating	Filter Type	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Mounting Type	Connector Style

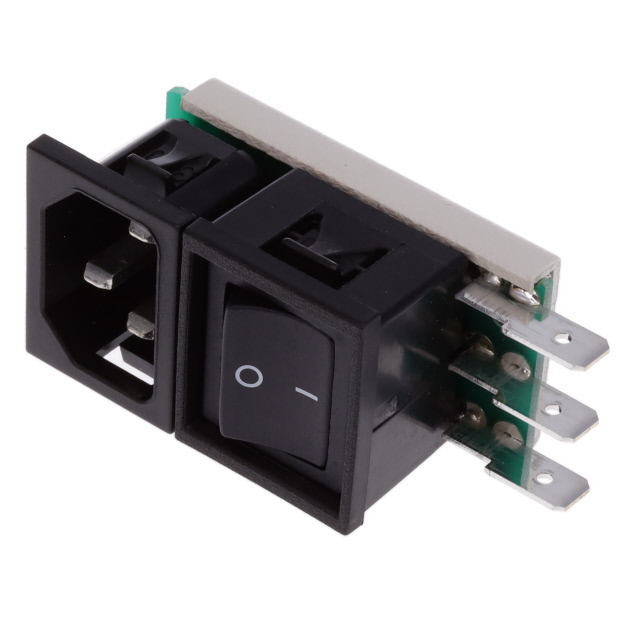

SCHURTER Inc. 6422.0053.30	Switch On-Off	CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	10 A	27.6 mm	46.7 mm	Receptacle Male Blades - Module	UL94 V-0	Unfiltered - Commercial	0.118 "	3 mm	250 VAC	Panel Mount Snap-In	IEC 320-C14

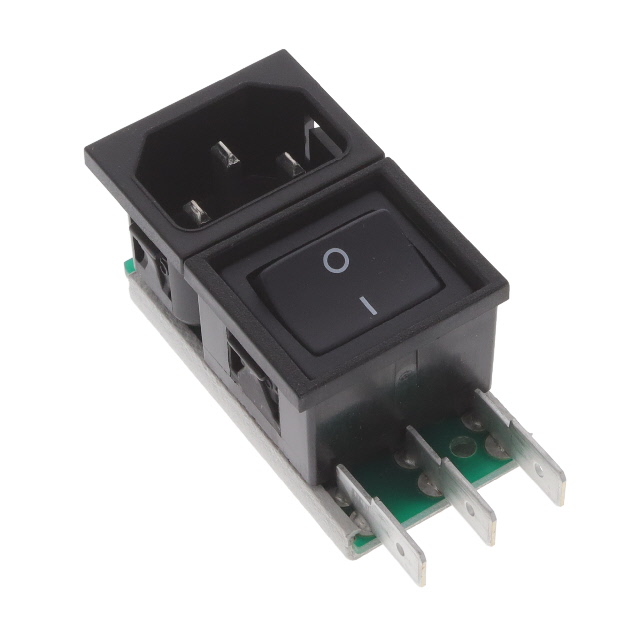

SCHURTER Inc. 6422.0053.25	Switch On-Off	CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	10 A	27.6 mm	46.7 mm	Receptacle Male Blades - Module	UL94 V-0	Unfiltered - Commercial	0.098 in	2.5 mm	250 VAC	Panel Mount Snap-In	IEC 320-C14

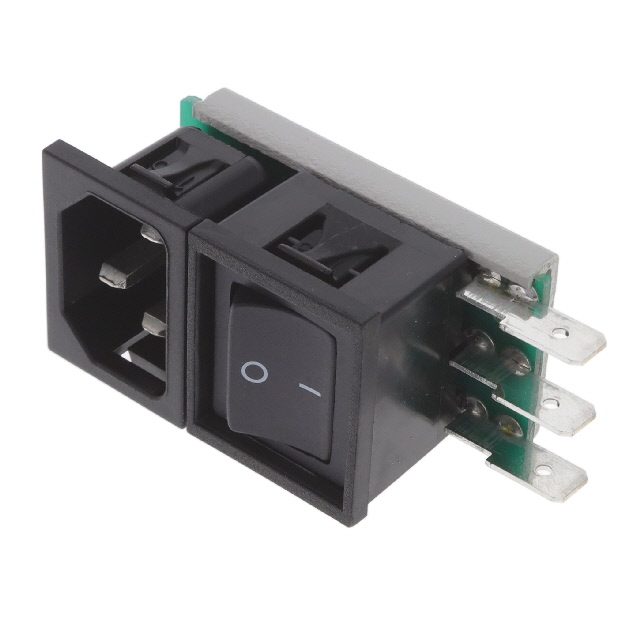

SCHURTER Inc. 6422.0053.15	Switch On-Off	CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	10 A	27.6 mm	46.7 mm	Receptacle Male Blades - Module	UL94 V-0	Unfiltered - Commercial	0.059 in	1.5 mm	250 VAC	Panel Mount Snap-In	IEC 320-C14

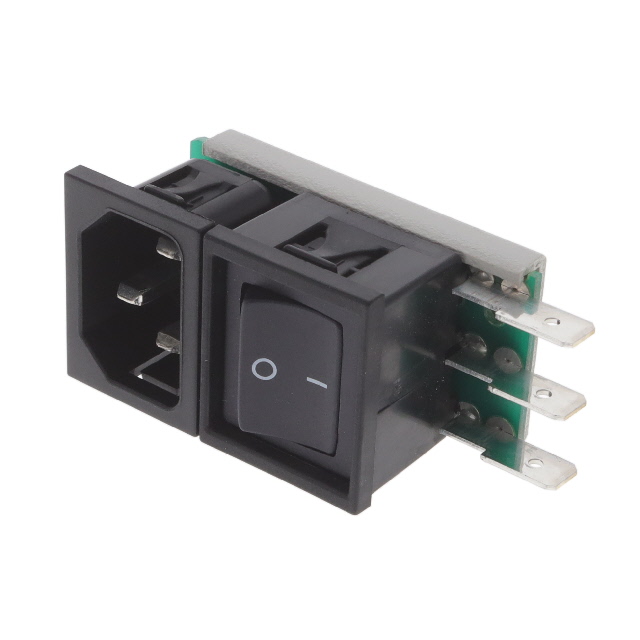

SCHURTER Inc. 6422.0053.12	Switch On-Off	CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	10 A	27.6 mm	46.7 mm	Receptacle Male Blades - Module	UL94 V-0	Unfiltered - Commercial	0.047 "	1.2 mm	250 VAC	Panel Mount Snap-In	IEC 320-C14
