SML-LXL8047 Series

Catalog

LED TITANBRITE BLU 454NM SMD

Part	Luminous Flux @ Current/Temperature	Viewing Angle	Temperature - Test	Package / Case	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Wavelength	Current - Max [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Flux @ 25°C, Current - Test	CCT (K)	Current - Test

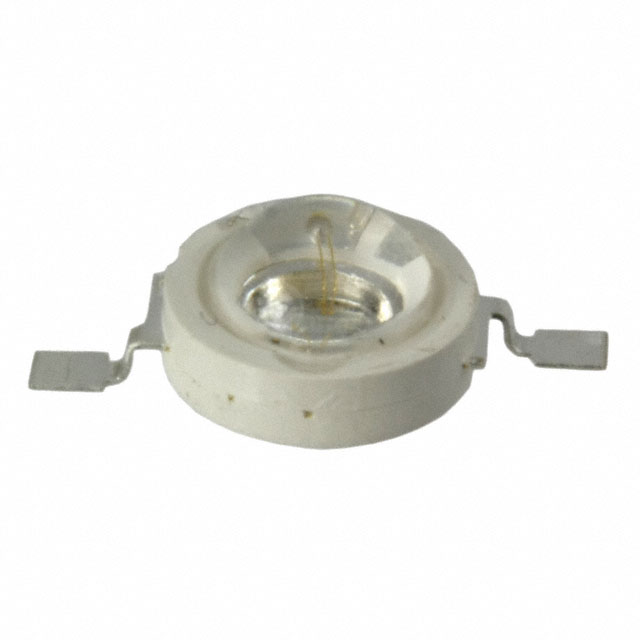

Lumex Opto/Components Inc. SML-LXL8047USBCTR3	20 lm	100 °	25 °C	2-SMD Gull Wing Exposed Pad	6 lm/W	0.185 "	4.7 mm	SMD	Surface Mount	Blue	4.6 V	454 nm	700 mA	0.315 in	8 mm

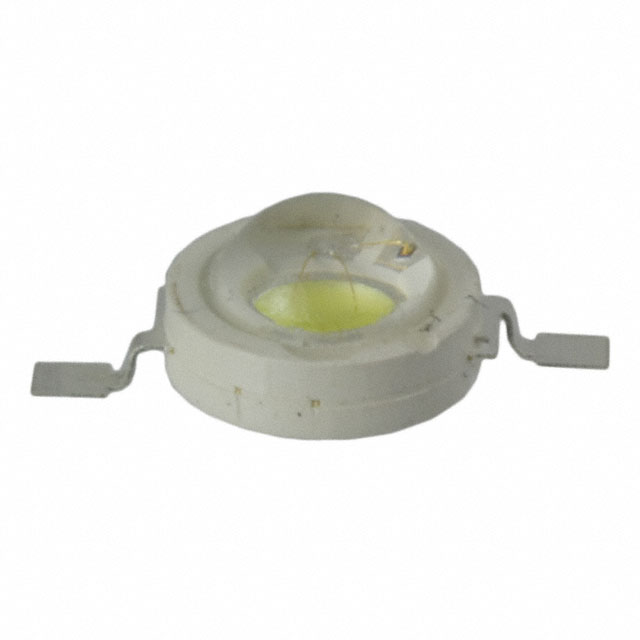

Lumex Opto/Components Inc. SML-LXL8047UWCTR/3		100 °		2-SMD Gull Wing Exposed Pad	50 lm/W	0.185 "	4.7 mm		Surface Mount	Cool White	4.6 V		1 A	0.315 in	8 mm	160 lm	6000 K

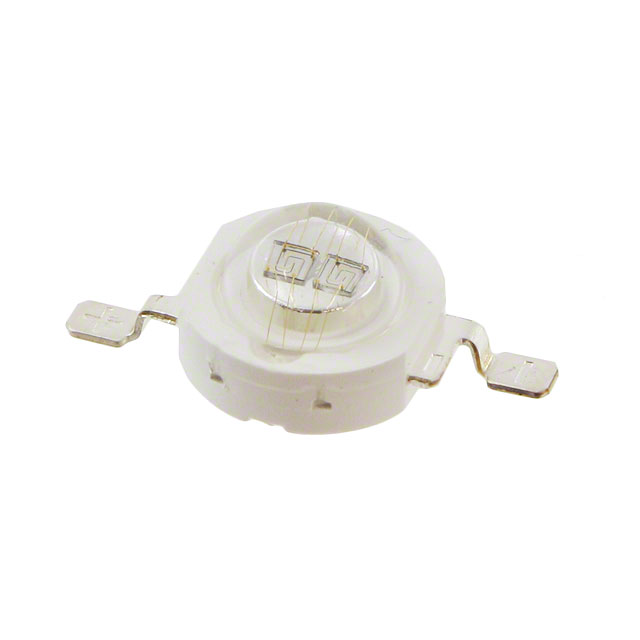

Lumex Opto/Components Inc. SML-LXL8047UVC	18 lm	100 °	25 °C	2-SMD Flat Leads	7 lm/W	0.192 "	4.88 mm	SMD	Surface Mount	Purple Ultraviolet (UV)	3.6 V	405 nm	700 mA	0.315 in	8 mm

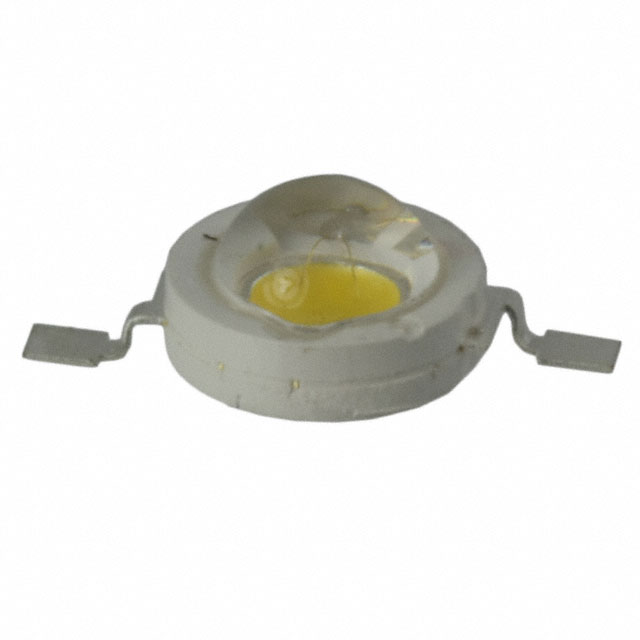

Lumex Opto/Components Inc. SML-LXL8047MWCTR/3		100 °		2-SMD Gull Wing Exposed Pad	43 lm/W	0.185 "	4.7 mm		Surface Mount	Warm White	4.6 V		1 A	0.315 in	8 mm	140 lm	3000 K
Lumex Opto/Components Inc. SML-LXL8047SICTR/2	50 lm	100 °	25 °C	2-SMD Gull Wing Exposed Pad	37 lm/W	0.185 "	4.7 mm	SMD	Surface Mount	Red	2.7 V	635 nm	500 mA	0.315 in	8 mm			500 mA
Lumex Opto/Components Inc. SML-LXL8047SYCTR/2	55 lm	100 °	25 °C	2-SMD Gull Wing Exposed Pad	44 lm/W	0.185 "	4.7 mm	SMD	Surface Mount	Yellow	2.5 V	598 nm	500 mA	0.315 in	8 mm			500 mA
