TB9120 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
AUTOMOTIVE STEPPING MOTOR DRIVER
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Grade | Package / Case | Motor Type - Stepper | Technology | Qualification | Interface | Function | Output Configuration | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Step Resolution [Min] | Step Resolution [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

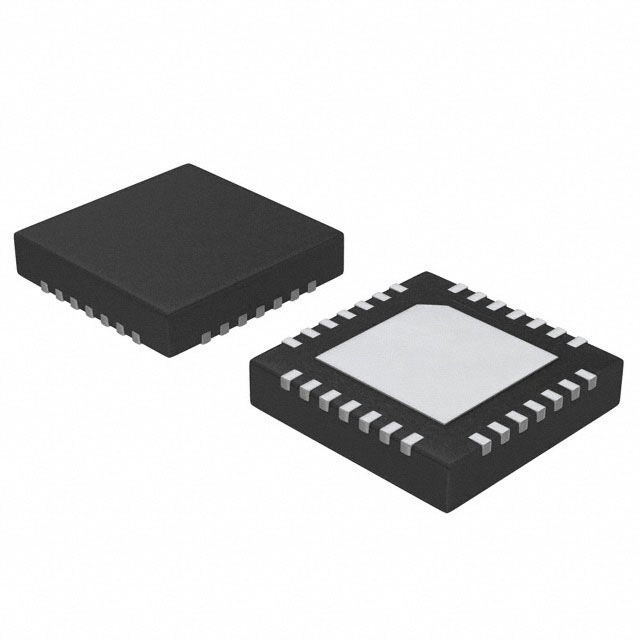

 Toshiba Semiconductor and Storage | 4.75 V | 5.25 V | Automotive | 28-VQFN Exposed Pad | Bipolar | Bi-CMOS | AEC-Q100 | PWM | Driver | Half Bridge (2) | 4.5 V | 18 V | Surface Mount Wettable Flank | 125 °C | -40 C | VQFN | 28 | 6 mm | 6 mm | 1 | 0.00390625 |
