001541 Series

Manufacturer: Molex

Catalog

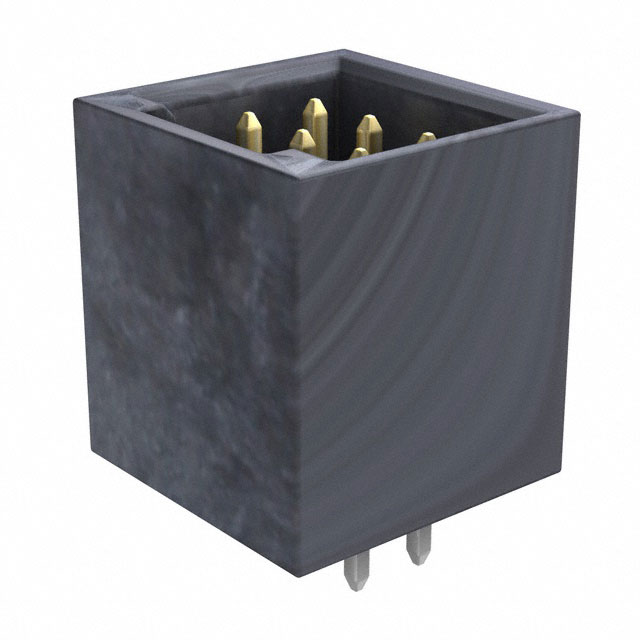

CONN HEADER VERT 6POS 2.54MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Rows [custom]	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Insulation Color	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Termination	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Shrouding	Style	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height
Molex 0015417006	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	6	2	Gold	All	UL94 V-0	Square	Black	Polyester Glass Filled	0.1 "	2.54 mm	0.76 Ám	30 Áin	Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Cable/Wire	12.07 mm	0.475 in	8 mm	0.315 in
Molex 0015418008	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	8	2	Gold	All	UL94 V-0	Square	Black	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	0.76 Ám	30 Áin	Right Angle Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Board Cable			8 mm	0.315 in	10.67 mm	0.42 in
Molex 0015417018	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	18	2	Gold	All	UL94 V-0	Square	Black	Polyester Glass Filled	0.1 "	2.54 mm	0.76 Ám	30 Áin	Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Cable/Wire	12.07 mm	0.475 in	8 mm	0.315 in
Molex 0015417060	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	60	2	Gold	All	UL94 V-0	Square	Black	Polyester Glass Filled	0.1 "	2.54 mm	0.76 Ám	30 Áin	Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Cable/Wire	12.07 mm	0.475 in	8 mm	0.315 in
Molex 0015417064	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	64	2	Gold	All	UL94 V-0	Square	Black	Polyester Glass Filled	0.1 "	2.54 mm	0.76 Ám	30 Áin	Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Cable/Wire	12.07 mm	0.475 in	8 mm	0.315 in
Molex 0015418040	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	40	2	Gold	All	UL94 V-0	Square	Black	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	0.76 Ám	30 Áin	Right Angle Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Board Cable			8 mm	0.315 in	10.67 mm	0.42 in
Molex 0015418012	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	12	2	Gold	All	UL94 V-0	Square	Black	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	0.76 Ám	30 Áin	Right Angle Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Board Cable			8 mm	0.315 in	10.67 mm	0.42 in
Molex 0015417020	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	20	2	Gold	All	UL94 V-0	Square	Black	Polyester Glass Filled	0.1 "	2.54 mm	0.76 Ám	30 Áin	Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Cable/Wire	12.07 mm	0.475 in	8 mm	0.315 in
Molex 0015418010	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	10	2	Gold	All	UL94 V-0	Square	Black	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	0.76 Ám	30 Áin	Right Angle Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Board Cable			8 mm	0.315 in	10.67 mm	0.42 in
Molex 0015418014	Automotive General Purpose Lighting Medical Telecommunications	1.9 Ám	74.8 Áin	Male Pin	Phosphor Bronze	0.13 "	3.3 mm	14	2	Gold	All	UL94 V-0	Square	Black	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	0.76 Ám	30 Áin	Right Angle Through Hole	Detent Lock	Solder	Header	0.1 in	2.54 mm	Tin	Shrouded - 4 Wall	Board to Board Cable			8 mm	0.315 in	10.67 mm	0.42 in
