F Series

Catalog

CHASSIS MOUNT TRANSFORMER, ISOLATING, 115V, 24V, 48 VA, 60HZ, SINGLE PRIMARY, SINGLE SECONDARY

Part	Power - Max [Max]	Type	Voltage - Secondary (Full Load)	Voltage - Isolation	Weight [custom]	Weight [custom]	Mounting Type	Primary Winding(s)	Secondary Winding(s)	Current - Output (Max) [Max]	Termination Style	Voltage - Primary	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Weight	Weight	Weight [custom]	Weight [custom]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]
Triad Magnetics F-229X	48 VA	Laminated Core	24 V	1500 VAC	2.3 lbs	1 kg	Chassis Mount	Single	Single	2 A	Wire Leads	115 V	4 "	2 in	65.07 mm

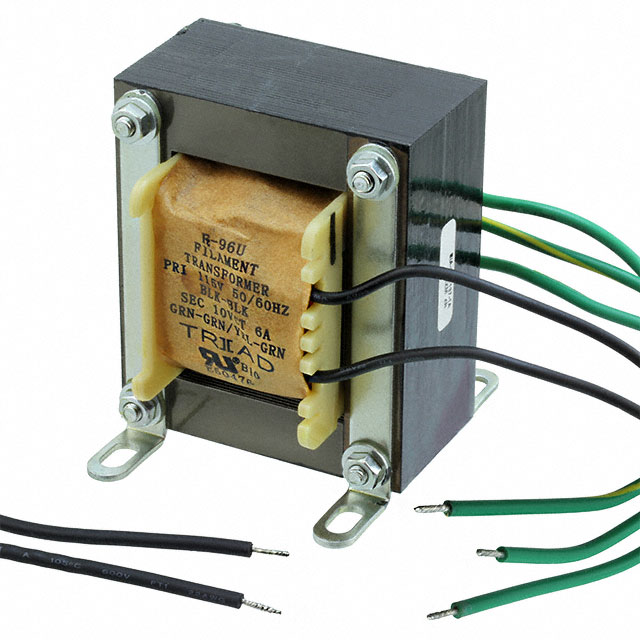

Triad Magnetics F-96U	60 VA	Laminated Core	10 V	1500 VAC			Chassis Mount	Single	Single	6 A	Wire Leads	115 V	2.5 "	2.75 in	76.2 mm	2.1 lb	952.5 g
Triad Magnetics F-3185U	56 VA	Laminated Core	28 V	1500 VAC	2.9 lbs	1.3 kg	Chassis Mount	Dual	Single	2 A	Wire Leads	115 V 230 V	2.5 "	61.9 mm	77.79 mm
Triad Magnetics F-44X	25.2 VA	Laminated Core	12.6 V	1500 VAC			Chassis Mount	Single	Single	2 A	Wire Leads	115 V	84.12 mm	2 in	49.2 mm			1.3 lbs	589.7 g
Triad Magnetics F-184X	28 VA	Laminated Core	28 V	1500 VAC			Chassis Mount	Single	Single	1 A	Wire Leads	115 V	93.65 mm	2.25 in	58.72 mm	1.4 lbs	635 g
Triad Magnetics F-254X	20 VA	Laminated Core	20 V	1500 VAC	1.5 lbs	680.4 g	Chassis Mount	Single	Single	1 A	Wire Leads	115 V	93.65 mm	49.2 mm	57.15 mm
Triad Magnetics F-252U	56 VA	Laminated Core	14 V	1500 VAC			Chassis Mount	Single	Single	4 A	Wire Leads	115 V	2.5 "	61.9 mm	76.2 mm	3 lb	1.4 kg

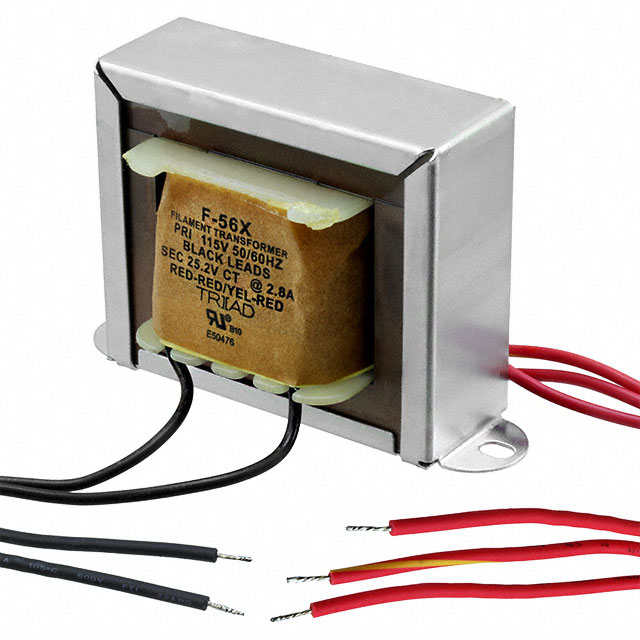

Triad Magnetics F-56X	71 VA	Laminated Core	25.2 V	1500 VAC	2.5 lbs	1.1 kg	Chassis Mount	Single	Single	2.8 A	Wire Leads	115 V	4 "	2.5 "	65.15 mm
Triad Magnetics F-119X	4.02 VA	Laminated Core	26.8 V	1500 VAC			Chassis Mount	Single	Single	150 mA	Wire Leads	115 V	60.32 mm	38.1 mm	34.93 mm	0.45 lb	204.12 g

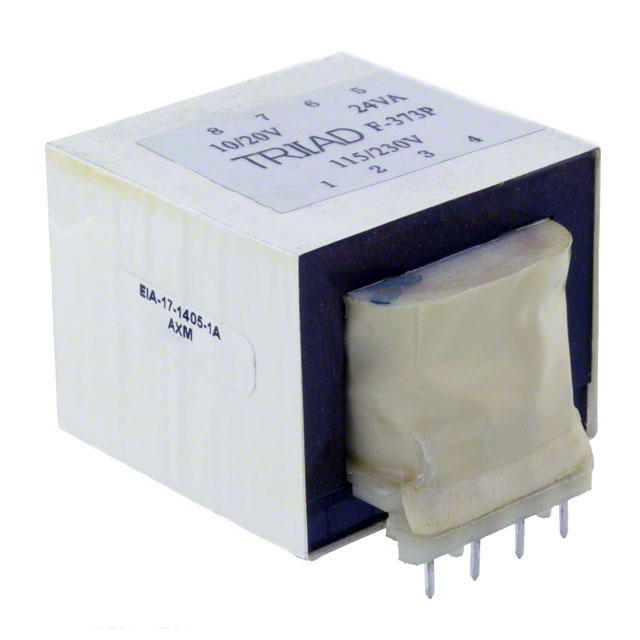

Triad Magnetics F-373P	24 VA	Laminated Core		1500 VAC	0.832 lb	377.4 g	Through Hole	Dual	Dual		PC Pin	115 V 230 V	41.28 mm	2.25 in	34.93 mm					2.4 A	1.2 A	10 V	20 V
