PXF6054 Series

Catalog

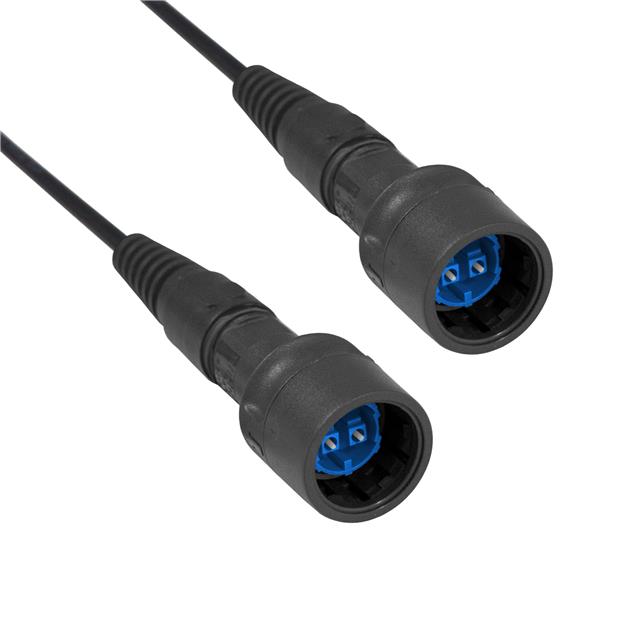

FIBRE CABLE, LC DUPLEX-LC DUPLEX, MM

Part	Color - Connectors	Bend Radius	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ratings	1st Connector	Cable Type	2nd Connector	Length - Overall [x]	Length - Overall [x]	Fiber Type	Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Bend Radius [radius]	Color - Cable	Length - Overall	Length - Overall	Insertion Loss	Length - Overall [custom]	Length - Overall [custom]
BULGIN LIMITED PXF6054AAJ	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	984.3 '	300 m	50/125	Duplex Multimode OM3	0.08 "	2 mm
BULGIN LIMITED PXF6054BAE	Aqua		Poly-Vinyl Chloride (PVC)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex			62.5/125	Duplex Multimode OM1	0.08 "	2 mm	30 mm	Orange	50 m	164 ft
BULGIN LIMITED PXF6054CAD	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	82 ft	25 m		Duplex OS1 Singlemode	0.08 "	2 mm		Yellow			0.2 dB
BULGIN LIMITED PXF6054BAG	Aqua		Poly-Vinyl Chloride (PVC)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	492.1 ft	150 m	62.5/125	Duplex Multimode OM1	0.08 "	2 mm	30 mm	Orange
BULGIN LIMITED PXF6054BAF	Aqua		Poly-Vinyl Chloride (PVC)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex			62.5/125	Duplex Multimode OM1	0.08 "	2 mm	30 mm	Orange	100 m	328.1 '
BULGIN LIMITED PXF6054BAA	Aqua		Poly-Vinyl Chloride (PVC)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex			62.5/125	Duplex Multimode OM1	0.08 "	2 mm	30 mm	Orange				16.4 '	5 m
BULGIN LIMITED PXF6054CAG	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	492.1 ft	150 m		Duplex OS1 Singlemode	0.08 "	2 mm		Yellow			0.2 dB
BULGIN LIMITED PXF6054CAC	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex				Duplex OS1 Singlemode	0.08 "	2 mm		Yellow	15 m	49.2 ft	0.2 dB
BULGIN LIMITED PXF6054BAJ	Aqua		Poly-Vinyl Chloride (PVC)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	984.3 '	300 m	62.5/125	Duplex Multimode OM1	0.08 "	2 mm	30 mm	Orange
BULGIN LIMITED PXF6054AAH	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	-25 °C	70 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	656.2 '	200 m	50/125	Duplex Multimode OM3	0.08 "	2 mm
