6630S0D Series
Manufacturer: Bourns Inc.
Beta
⌘K

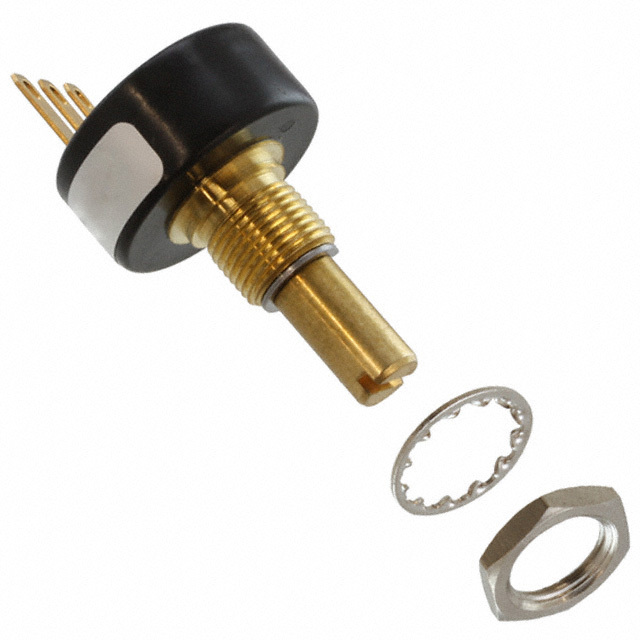

POT 1K OHM 1W PLASTIC LINEAR
| Part | Actuator Length [x] | Actuator Length [x] | Termination Style | Number of Turns | Resistance (Ohms) | Number of Gangs | Built in Switch | Power (Watts) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Temperature Coefficient | Adjustment Type | Mounting Type | Bushing Thread | Size - Body [diameter] | Size - Body [diameter] | Rotation | Taper | Actuator Type | Resistive Material | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 1k | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Flatted | Conductive Plastic | 15 % | |
Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 10k | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Flatted | Conductive Plastic | 15 % | |
 Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 1k | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Slotted | Conductive Plastic | 15 % | |
Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 10k | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Slotted | Conductive Plastic | 15 % | |
 Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Slotted | Conductive Plastic | 15 % | 5 kOhms | |
Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Flatted | Conductive Plastic | 15 % | 5 kOhms | |
Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Slotted | Conductive Plastic | 15 % | 20 kOhms | |
Bourns Inc. | 0.875 in | 22.23 mm | Solder Lug | 1 | 1 | None | 1 W | 6.35 mm | 0.25 in | 500 ppm/°C | User Defined | Panel Mount | 3/8-32 | 22.23 mm | 0.875 " | Continuous | Linear | Slotted | Conductive Plastic | 15 % | 5 kOhms |
