VSK-S3 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 9V 3W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Standard Number	Current - Output (Max) [Max]	Load Regulation	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Mounting Type	Approval Agency	Power (Watts)	Voltage - Output 1	Features	Line Regulation	Efficiency	Package / Case	Weight	Weight
CUI Inc. VSK-S3-9U	70 °C	-25 °C	ITE (Commercial)	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	330 mA	±1%	Enclosed	0.91 in	1.46 in	23 mm	37 mm	15.5 mm	0.61 in	1	Through Hole	CB Scheme EN IEC UL	3 W	9 V	Universal Input	0.5 %	74 %	26-DIP Module 7 Leads	25.4 g	0.056 lb

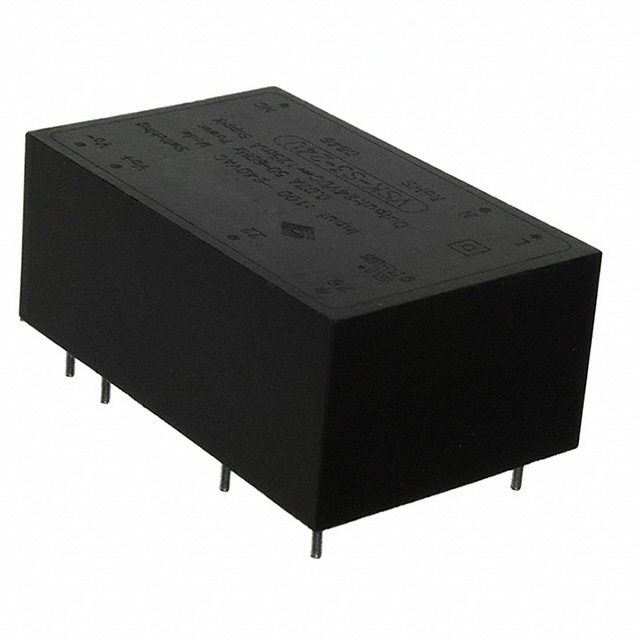

CUI Inc. VSK-S3-24U	70 °C	-25 °C	ITE (Commercial)	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	125 mA	±1%	Enclosed	0.91 in	1.46 in	23 mm	37 mm	15.5 mm	0.61 in	1	Through Hole	CB Scheme EN IEC UL	3 W	24 V	Universal Input	0.5 %	78 %	26-DIP Module 7 Leads	25.4 g	0.056 lb
CUI Inc. VSK-S3-3R3U	70 °C	-25 °C	ITE (Commercial)	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	700 mA	±1%	Enclosed	0.91 in	1.46 in	23 mm	37 mm	15.5 mm	0.61 in	1	Through Hole	CB Scheme EN IEC UL	3 W	3.3 V	Universal Input	0.5 %	63 %	26-DIP Module 7 Leads	25.4 g	0.056 lb
