747497 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

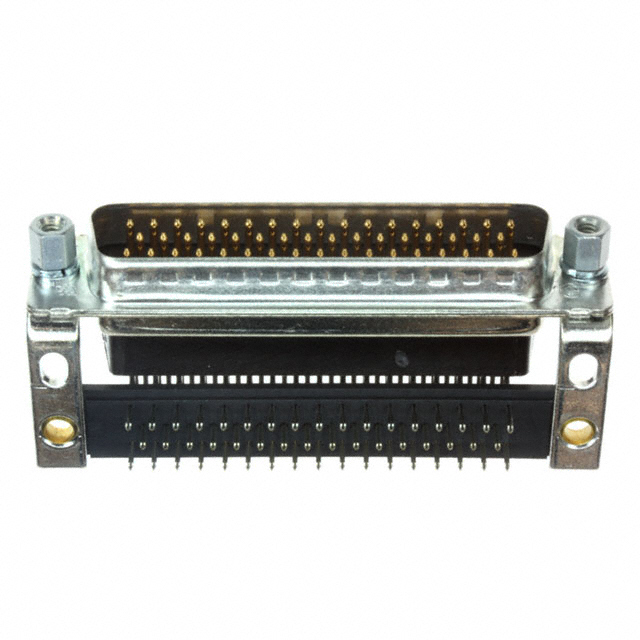

CONN D-SUB PLUG 50POS R/A SLDR
| Part | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Connector Style | Flange Feature | Contact Finish Thickness | Number of Positions | Contact Finish | Material Flammability Rating | Number of Rows [custom] | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Termination | Features | Backset Spacing | Backset Spacing | Contact Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | Black | -55 C | 105 ░C | Brass | Thermoplastic | D-Sub | 4-40 Mating Side Female Screwlock | Flash | 50 | Gold | UL94 V-0 | 3 | Right Angle Through Hole | 5 | D DD | Plug Male Pins | Solder | Grounding Indents Mounting Brackets | 13.84 mm | 0.545 in | Signal | 6 A |
