PRPC031 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 31POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Type	Style	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Insulation Material	Connector Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Insulation Color	Contact Material	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Rows [custom]

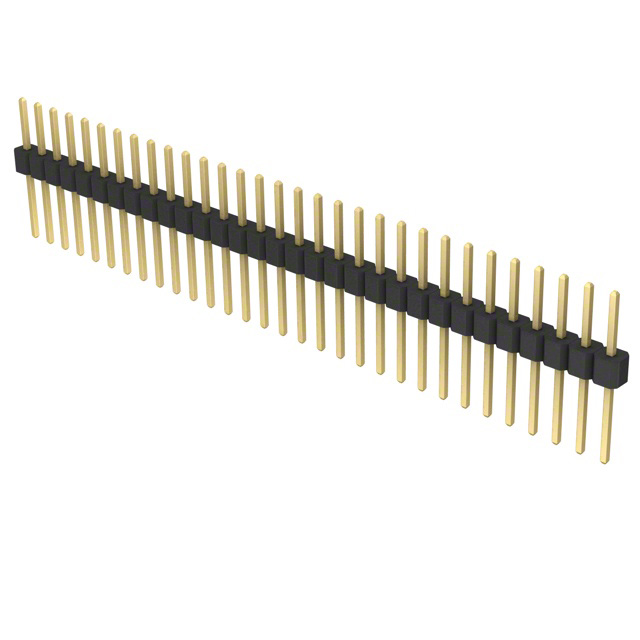

Sullins Connector Solutions PRPC031SACN-RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Through Hole	0.1 "	2.54 mm	31	0.648 in	16.47 mm	0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	8.13 mm	0.32 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A

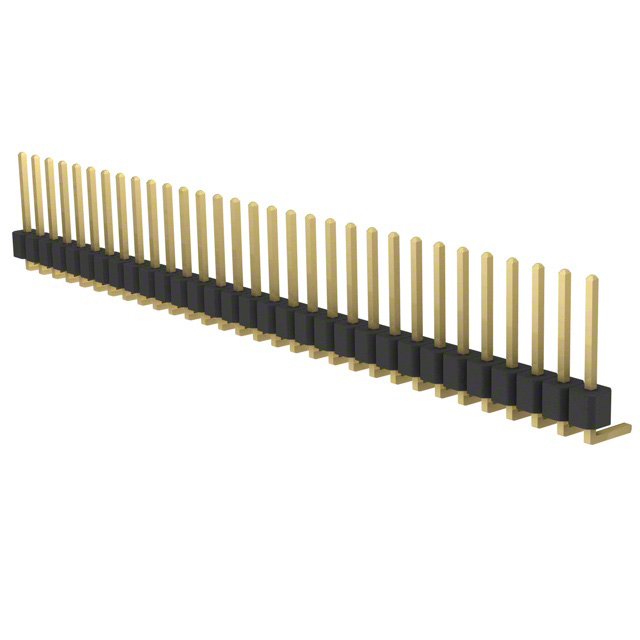

Sullins Connector Solutions PRPC031SGAN-M71RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Right Angle Through Hole	0.1 "	2.54 mm	31			0.318 in	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	3.05 mm	0.12 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A
Sullins Connector Solutions PRPC031SAAN-RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Through Hole	0.1 "	2.54 mm	31			0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	3.05 mm	0.12 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A	0.448 in	11.39 mm

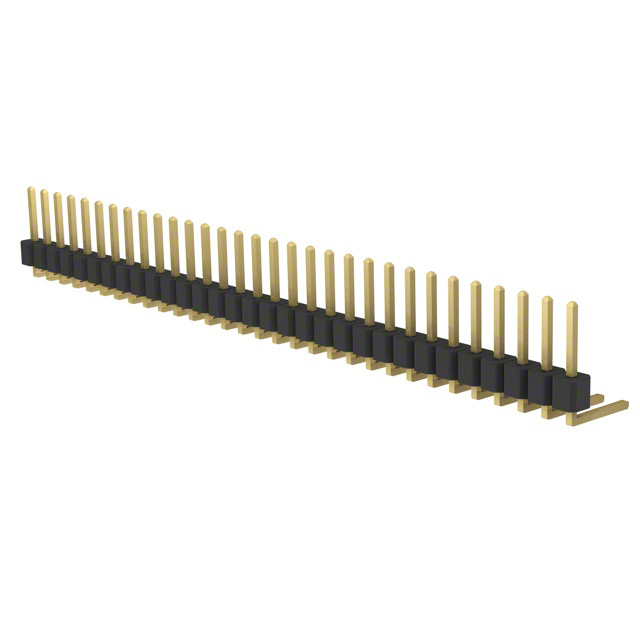

Sullins Connector Solutions PRPC031SBBN-M71RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Right Angle Through Hole	0.1 "	2.54 mm	31			0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	5.58 mm	0.22 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A

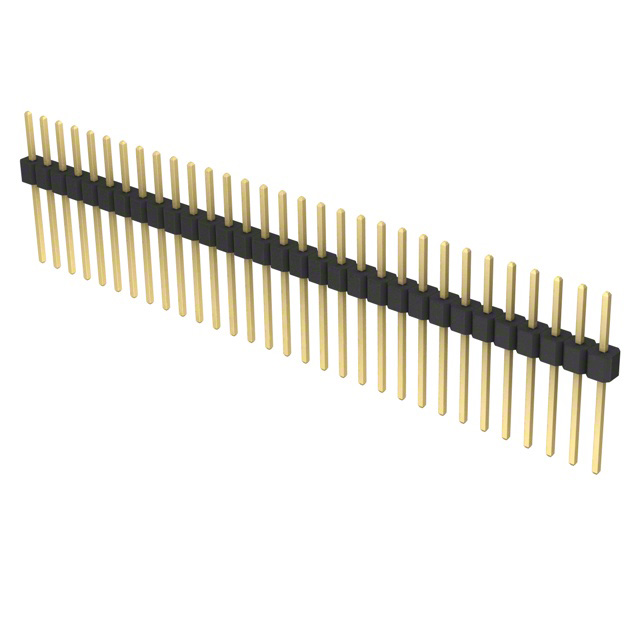

Sullins Connector Solutions PRPC031SADN-RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Through Hole	0.1 "	2.54 mm	31			0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	10.67 mm	0.42 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A	0.748 in	19.01 mm
Sullins Connector Solutions PRPC031SFAN-RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Through Hole	0.1 "	2.54 mm	31	0.537 in	13.63 mm	0.318 in	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	3.05 mm	0.12 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A

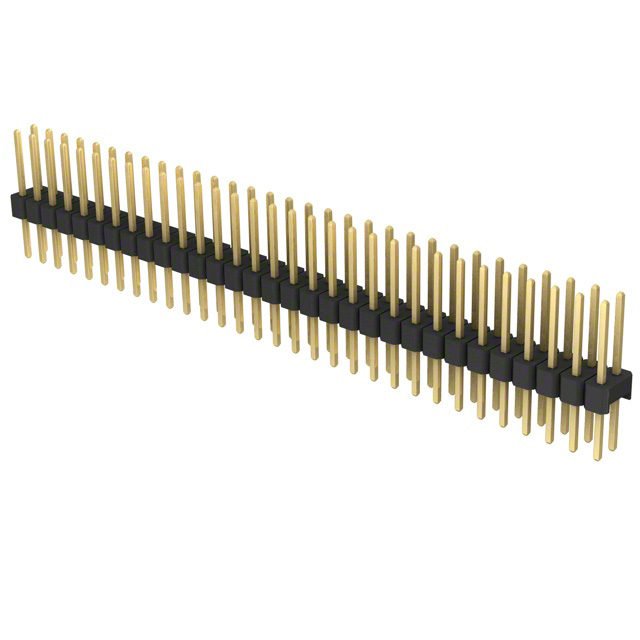

Sullins Connector Solutions PRPC031DFBN-RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Through Hole	0.1 "	2.54 mm				0.318 in	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	5.58 mm	0.22 in	Push-Pull	0.098 "	2.5 mm	Solder		Flash	Gold	Gold	Black	Brass	3 A		0.637 in	16.17 mm	0.1 in	2.54 mm	62	2

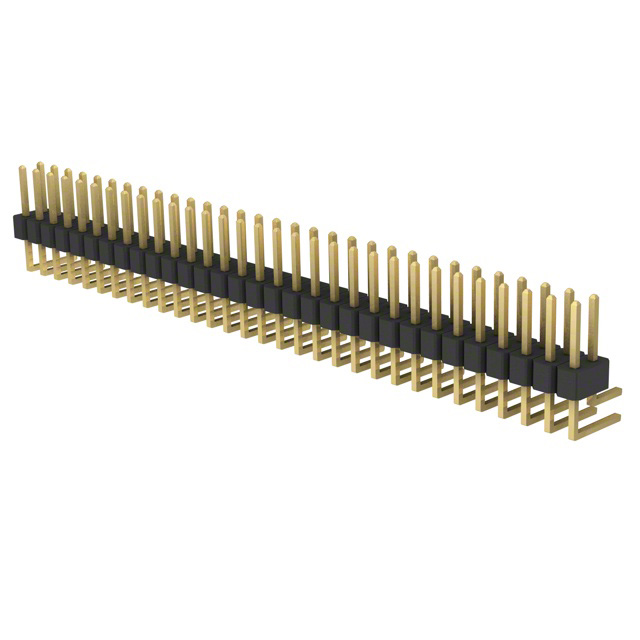

Sullins Connector Solutions PRPC031DBAN-M71RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Right Angle Through Hole	0.1 "	2.54 mm				0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	3.05 mm	0.12 in	Push-Pull	0.197 "	5 mm	Solder		Flash	Gold	Gold	Black	Brass	3 A				0.1 in	2.54 mm	62	2
Sullins Connector Solutions PRPC031DABN-RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Through Hole	0.1 "	2.54 mm				0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	5.84 mm	0.23 "	Push-Pull	0.098 "	2.5 mm	Solder		Flash	Gold	Gold	Black	Brass	3 A	0.558 in	14.18 mm		0.1 in	2.54 mm	62	2

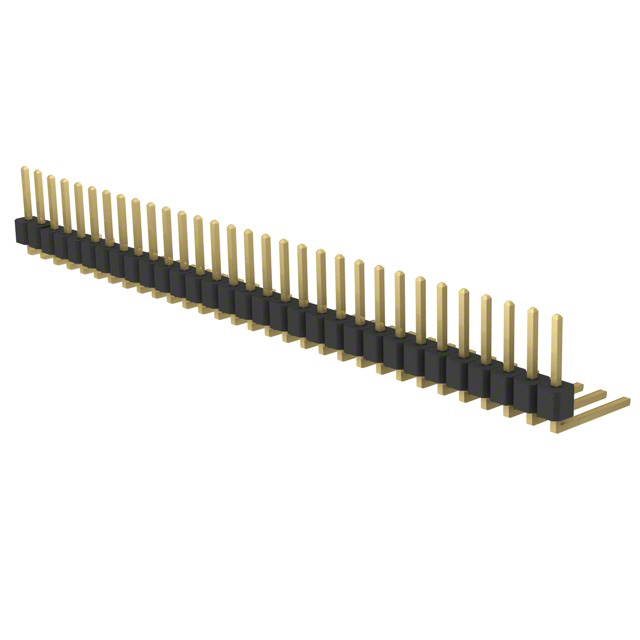

Sullins Connector Solutions PRPC031SBCN-M71RC	Flash	Square	-40 C	105 ░C	Unshrouded	Male Pin	Board to Board Cable	Right Angle Through Hole	0.1 "	2.54 mm	31			0.23 in	5.84 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Header Breakaway	All	8.13 mm	0.32 in	Push-Pull	0.098 "	2.5 mm	Solder	1	Flash	Gold	Gold	Black	Brass	3 A
