R16128 Series

Catalog

N / STRAIGHT SQUARE FLANGE JACK

Part	Body Material	Dielectric Material	Mating Cycles	Center Contact Plating	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insertion Loss	Housing Color	Fastening Type	Connector Style	Mounting Feature	Cable Group	Cable Group	Center Contact Material	Connector Type	Contact Termination	Frequency - Max [Max]	Ingress Protection	Mounting Type	Shield Termination	Impedance	Number of Ports
Radiall USA, Inc. R161282000W	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	500 V	0.15 dB	Silver	Threaded	N Type	Flange	RG-58	141	Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP67 - Dust Tight Waterproof	Panel Mount	Crimp	50 Ohms	1

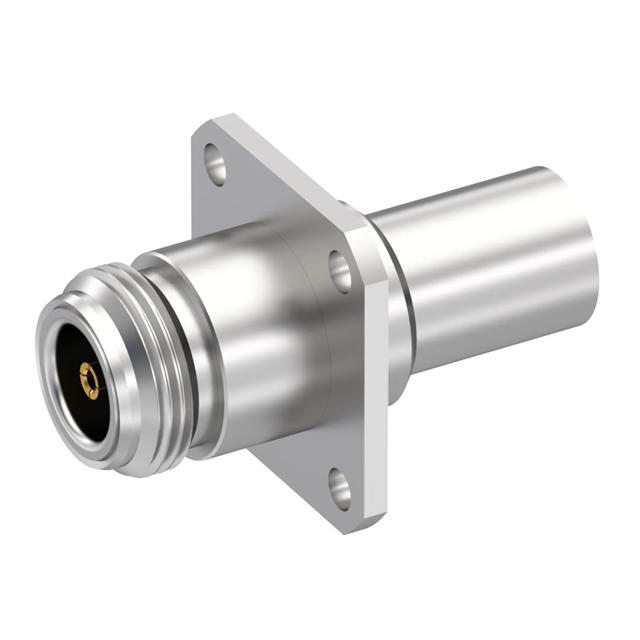

Radiall USA, Inc. R161286000	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	1400 V	0.15 dB	Silver	Threaded	N Type	Flange	RG-165	213	Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP67 - Dust Tight Waterproof	Panel Mount	Crimp	50 Ohms	1
Radiall USA, Inc. R161282000	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	500 V	0.15 dB	Silver	Threaded	N Type	Flange	RG-58	141	Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP67 - Dust Tight Waterproof	Panel Mount	Crimp	50 Ohms	1

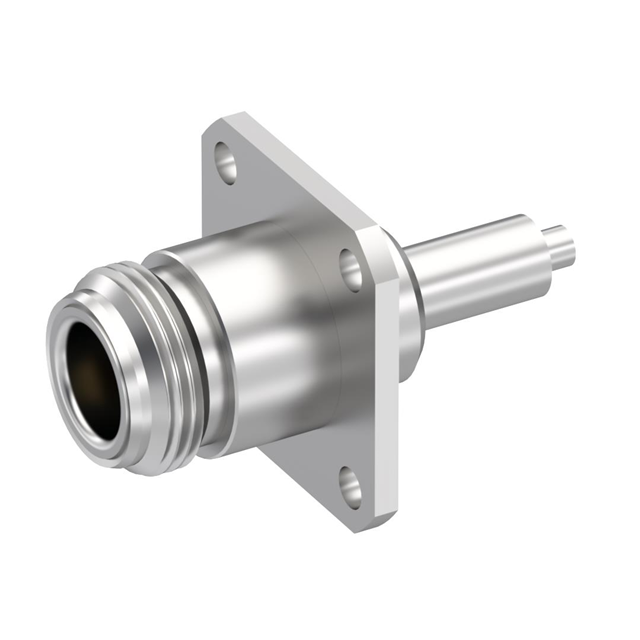

Radiall USA, Inc. R161283000	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	850 V	0.15 dB	Silver	Threaded	N Type	Flange	223 400 RG-142		Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP67 - Dust Tight Waterproof	Panel Mount	Crimp	50 Ohms	1
Radiall USA, Inc. R161281300W	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	250 V	0.15 dB	Silver	Threaded	N Type	Flange	316 316 Double Braid RG-188		Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP65 - Dust Tight Water Resistant	Panel Mount	Crimp	50 Ohms	1
Radiall USA, Inc. R161283000W	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	850 V	0.15 dB	Silver	Threaded	N Type	Flange	223 400 RG-142		Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP67 - Dust Tight Waterproof	Panel Mount	Crimp	50 Ohms	1
Radiall USA, Inc. R161286000W	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	1400 V	0.15 dB	Silver	Threaded	N Type	Flange	RG-165	213	Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP67 - Dust Tight Waterproof	Panel Mount	Crimp	50 Ohms	1

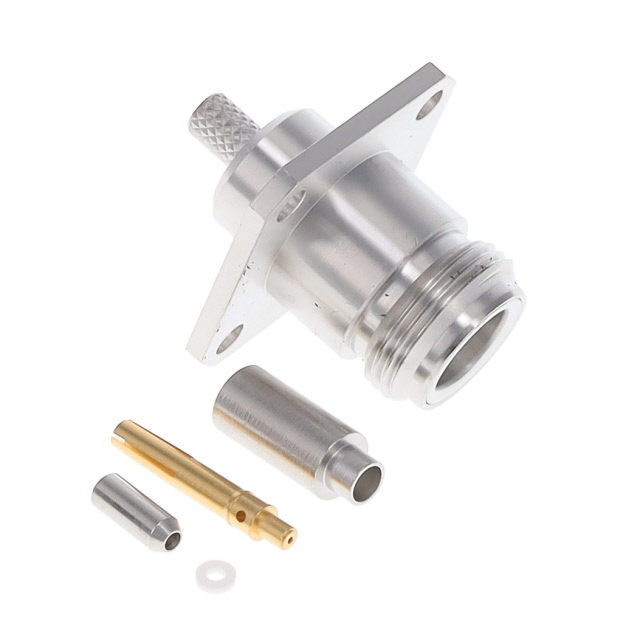

Radiall USA, Inc. R161281300	Brass	Polytetrafluoroethylene (PTFE)	500	Gold	White Bronze	155 C	-55 C	250 V	0.15 dB	Silver	Threaded	N Type	Flange	176DS 316 RG-174		Beryllium Copper	Female Socket Jack	Crimp	11 GHz	IP65 - Dust Tight Water Resistant	Panel Mount	Crimp	50 Ohms	1
