MAX17761 Series

Catalog

EVAL BOARD KIT FOR MAX17761

Part	Outputs and Type	Outputs and Type	Frequency - Switching	Current - Output	Regulator Topology	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Board Type	Supplied Contents	Utilized IC / Part	Voltage - Input (Max) [Max]	Number of Outputs	Output Configuration	Voltage - Output (Min/Fixed)	Mounting Type	Supplier Device Package	Package / Case	Frequency - Switching [Min]	Frequency - Switching [Max]	Output Type	Function	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Voltage - Output (Max) [Max]

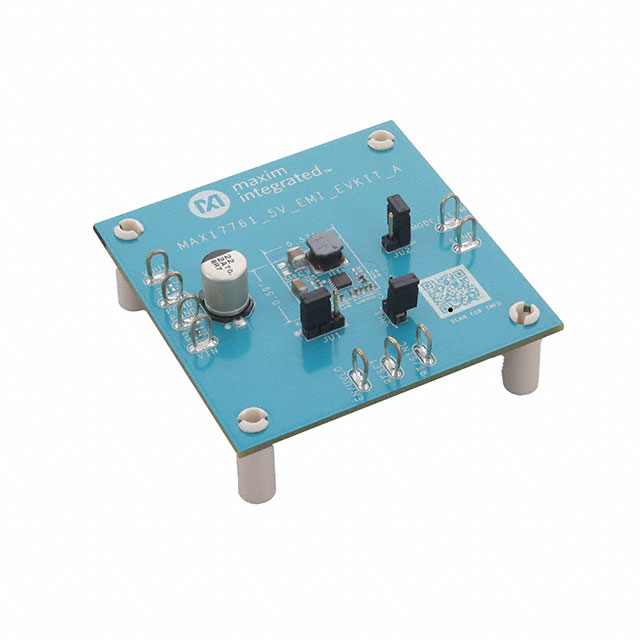

Analog Devices Inc./Maxim Integrated MAX17761EVKITBE#	Non-Isolated	1	400 kHz	1 A	Buck	5 V	76 V	6.5 V	DC/DC Step Down	Fully Populated	Board(s)	MAX17761
Analog Devices Inc./Maxim Integrated MAX17761ATC+T				1 A									76 V	1	Positive	0.8 V	Surface Mount	12-TDFN (3x3)	12-WFDFN Exposed Pad	200 kHz	600 kHz	Adjustable	Step-Down	4.5 V	-40 °C	125 °C	Buck	68.4 V

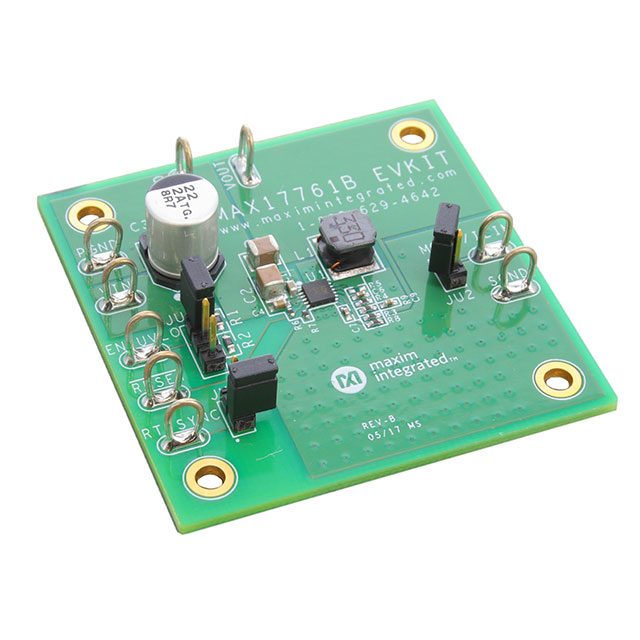

Analog Devices Inc./Maxim Integrated MAX17761EVKITB#	Non-Isolated	1	400 kHz	1 A	Buck	5 V	76 V	6.5 V	DC/DC Step Down	Fully Populated	Board(s)	MAX17761
