FGG.2B Series
Manufacturer: LEMO
Beta
⌘K

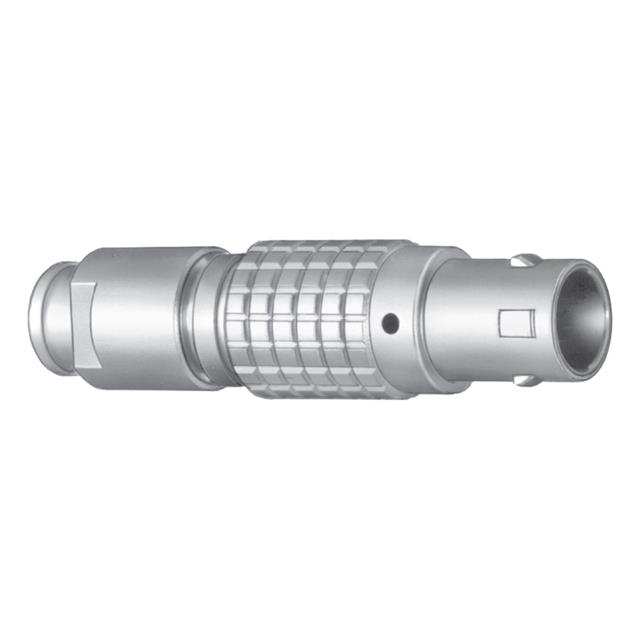

CONN PLUG MALE 8POS GOLD CRIMP
| Part | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Shell Finish | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Connector Type | Current Rating (Amps) | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Orientation [custom] | Ingress Protection | Contact Material | Features | Shell Size - Insert | Contact Finish - Mating | Color | Backshell Material, Plating | Shielding | Termination | Material Flammability Rating | Fastening Type | Mounting Type | Insert Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
39.4 µin | 1 µm | Chrome | 7.2 mm | 0.283 " | 8.2 mm | 0.323 " | Plug Male Pins | 10 A | 8 | -55 C | 250 °C | Brass | G | IP50 - Dust Protected | Brass | Backshell | 308 | Gold | Silver | Brass Chrome | Shielded | Crimp | UL94 V-0 | Push-Pull | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Metal |
