1178C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

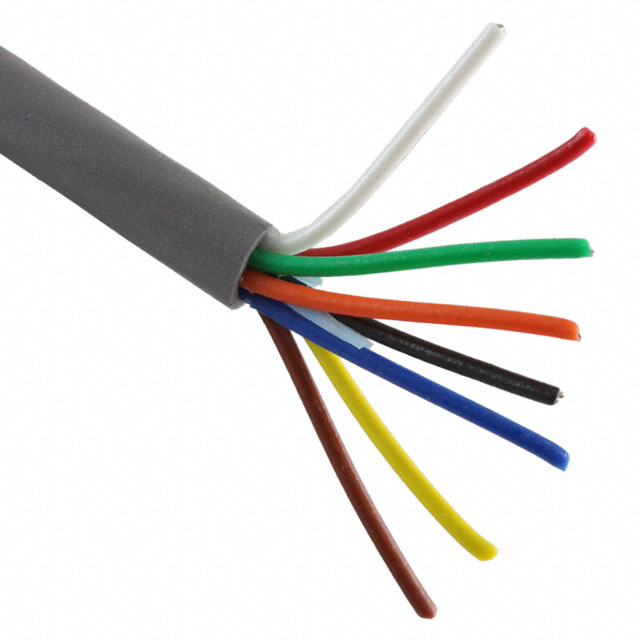

CABLE 8COND 22AWG SLATE 500'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Insulation | Conductor Material | Cable Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Number of Conductors [custom] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 30 AWG | 7 | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Communication Control | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 22 AWG | 150 V | 0.23 in | 5.84 mm | Poly-Vinyl Chloride (PVC) | 8 | Slate | ||
ALPHA WIRE | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Communication Control | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 22 AWG | 150 V | 0.23 in | 5.84 mm | Poly-Vinyl Chloride (PVC) | 8 | Slate | 100 ft | 30.5 m | ||
ALPHA WIRE | 30 AWG | 7 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Communication Control | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 22 AWG | 150 V | 0.23 in | 5.84 mm | Poly-Vinyl Chloride (PVC) | 8 | Slate |
