HFW13R Series

Catalog

CONN FFC FPC TOP 13POS 1MM R/A

Part	Mating Cycles	Housing Color	Contact Finish	Flat Flex Type	Termination	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Number of Positions	FFC, FCB Thickness	Material Flammability Rating	Contact Material	Mounting Type	Pitch	Pitch	Cable End Type	Connector/Contact Type	Current Rating (Amps)	Features

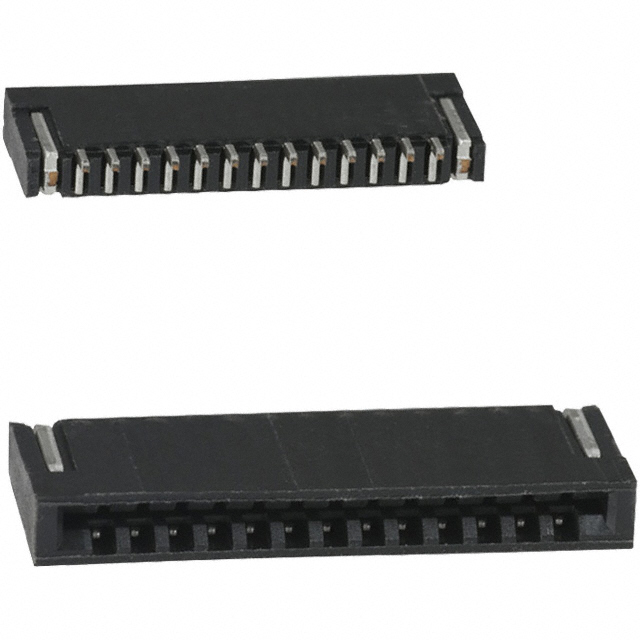

Amphenol ICC (FCI) HFW13R-2STE1LF	30	Black	Tin	FFC FPC	Solder	Glass Filled Nylon 6T Polyamide (PA6T)	-55 C	105 ░C	1.9 mm	0.075 in	100 V	13	0.3 mm	UL94 V-0	Phosphor Bronze	Right Angle Surface Mount	1 mm	0.039 in	Straight or Tapered	Contacts Top
Amphenol ICC (FCI) HFW13R-1STE1LF	30	Black	Tin	FFC FPC	Solder	Glass Filled Nylon 6T Polyamide (PA6T)	-55 C	105 ░C	1.9 mm	0.075 in	100 V	13	0.3 mm	UL94 V-0	Phosphor Bronze	Right Angle Surface Mount	1 mm	0.039 in	Straight or Tapered	Contacts Bottom
Amphenol ICC (FCI) HFW13R-1STE1MTLF	30	Black	Tin	FFC FPC	Solder	Glass Filled Thermoplastic	-55 C	105 ░C	3.1 mm	0.122 in	50 V	13	0.3 mm	UL94 V-0	Phosphor Bronze	Right Angle Surface Mount	1 mm	0.039 in	Straight or Tapered	Contacts Bottom	0.5 A	Solder Retention
Amphenol ICC (FCI) HFW13R-2STE1H1LF	30	Black	Tin	FFC FPC	Solder	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	105 ░C	1.9 mm	0.075 in	100 V	13	0.3 mm	UL94 V-0	Phosphor Bronze	Right Angle Surface Mount	1 mm	0.039 in	Straight or Tapered	Contacts Top
Amphenol ICC (FCI) HFW13R-1STAE1LF	30	Black	Gold	FPC	Solder	Glass Filled Nylon 6T Polyamide (PA6T)	-55 C	105 ░C	1.9 mm	0.075 in	100 V	13	0.3 mm	UL94 V-0	Phosphor Bronze	Right Angle Surface Mount	1 mm	0.039 in	Tapered	Contacts Bottom		Solder Retention
